Forward Collision-Avoidance Assist operation

Basic function

Forward Collision-Avoidance Assist may warn and brake your vehicle depending on the collision risk level.

Collision warning

2025 Genesis GV70 instrument cluster collision warning screen image. The text 'Collision Warning' appears above a vehicle icon overlaid with a warning triangle containing an exclamation mark. A white vehicle is shown on the road with sensor wave lines ahead. This explains the visual warning function of the Forward Collision-Avoidance Assist system.

2C_FCABasicCollisionWarningInfo

  • To warn the driver of a collision, the O warning light blinks and the "Collision Warning" warning message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates (if equipped).

  • If a vehicle or motorcyclist is detected in front, the function operates when your vehicle speed is between about 10-200 km/h (6-124 mph).

  • If a pedestrian or cyclist is detected in front, the function operates when your vehicle speed is between about 10-85 km/h (6-53 mph).

Emergency braking

2025 Genesis GV70 instrument cluster image showing the Emergency Braking warning. The text 'Emergency Braking' is displayed above a white vehicle and a preceding vehicle graphic with a triangle exclamation icon. This explains the visual alert provided when emergency braking is assisted.

2C_FCABasicEmergencyBrakingInfo

To warn the driver that emergency braking is assisted, the O warning light blinks and the "Emergency Braking" warning message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates (if equipped).

Emergency braking operates under the following conditions:

  • Vehicle or motorcyclist:

    Driving vehicle

    Stopped vehicle

    Weak braking power

    About 10-200 km/h (6-125 mph)

    Strong braking power

    About 10-130 km/h (6-81 mph)

    About 10-75 km/h (6-47 mph) (10-100 km/h (6-62 mph))*1

If Forward Collision-Avoidance Assist judges that avoiding a collision is difficult even by changing the driving lane, braking is assisted more earlier. (if equipped)

  • Pedestrian or cyclist:

    The function operates when your vehicle speed is between about 10-65 km/h (6-40 mph).

Stopping vehicle and ending brake control

After your vehicle has stopped following an Emergency Braking event, the "Drive carefully" warning message may appear on the instrument cluster.

Depress the brake pedal immediately and check the surroundings.

  • Braking control ends about 2 seconds after your vehicle is stopped following an Emergency Braking event.

The audible warning can be turned off while collision warning or emergency braking is operating by pressing the hazard warning flasher button.

Junction Turning function

Junction Turning function may warn and brake your vehicle depending on the collision risk level.

Collision warning

2025 Genesis GV70 Junction Turning Collision Warning image. The instrument cluster displays 'Collision Warning' text. A graphic depicts the vehicle detecting an oncoming car on the left, highlighted with a warning triangle icon and radar waves. This explains the warning function for collision risks with oncoming vehicles while turning at a junction.

2C_FCAJunctionTurningCollisionWarningInfo

  • To warn the driver of a collision, the O warning light blinks and the "Collision Warning" warning message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates (if equipped).

  • The function operates when your vehicle speed is between about 10-30 km/h (6-19 mph).

  • The oncoming vehicle speed is between about 30-70 km/h (19-44 mph).

  • A motorcyclist or cyclist speed is about 15-70 km/h (9-44 mph).

Emergency braking

2025 Genesis GV70 Junction Turning Emergency Braking image. The screen displays 'Emergency Braking' text, a white vehicle, and an oncoming vehicle with a warning icon. This explains the function that assists with braking to prevent collisions with oncoming vehicles.

2C_FCAJunctionTurningEmergencyBrakingInfo

  • To warn the driver that emergency braking is assisted, the O warning light blinks and the "Emergency Braking" warning message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates (if equipped).

  • In an emergency braking situation, braking is assisted with strong braking power by the function to help prevent collision with the oncoming vehicle.

  • The function operates when your vehicle speed is between about 10-30 km/h (6-19 mph).

  • The oncoming vehicle speed is between about 30-70 km/h (19-44 mph).

  • A motorcyclist or cyclist speed is about 15-70 km/h (9-44 mph).

If the driver's seat is on the left side, Junction Turning function operates only when you turn left. If the driver's seat position is on the right side, the function will operate only when you turn right.

Stopping vehicle and ending brake control

After your vehicle has stopped following an Emergency Braking event, the "Drive carefully" warning message may appear on the instrument cluster.

Depress the brake pedal immediately and check the surroundings.

  • Braking control ends about 2 seconds after your vehicle is stopped following an Emergency Braking event.

  • The audible warning can be turned off while collision warning or emergency braking is operating by pressing the hazard warning flasher button.

  • When turning right (right-hand drive) or left (left-hand drive) at an intersection, braking is assisted to reduce or avoid collisions if there is a collision risk with a cyclist approaching at the speed of 15 to 20 km/h (9 to 12 mph) from the opposite side.

Direct Oncoming function

Direct Oncoming function may warn and brake your vehicle depending on the collision risk level.

Collision warning

2025 Genesis GV70 instrument cluster collision warning screen image. The text 'Collision Warning' appears above a vehicle icon overlaid with a warning triangle containing an exclamation mark. A white vehicle is shown on the road with sensor wave lines ahead. This explains the visual warning function of the Forward Collision-Avoidance Assist system.

2C_FCABasicCollisionWarningInfo

  • To warn the driver of a collision, the O warning light blinks and the "Collision Warning" warning message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates (if equipped).

  • The function operates when your vehicle speed is between about 30-130 km/h (19-81 mph) and the detected oncoming vehicle or motorcyclist speed is about above 10 km/h (6 mph).

Emergency braking

2025 Genesis GV70 instrument cluster image showing the Emergency Braking warning. The text 'Emergency Braking' is displayed above a white vehicle and a preceding vehicle graphic with a triangle exclamation icon. This explains the visual alert provided when emergency braking is assisted.

2C_FCABasicEmergencyBrakingInfo

  • To warn the driver that emergency braking is assisted, the O warning light blinks and the "Emergency Braking" warning message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates (if equipped).

  • In an emergency braking situation, braking is assisted with strong braking power by the function to help prevent collision with the oncoming vehicle.

  • The function operates when your vehicle speed is between about 30-130 km/h (19-80 mph) and the detected oncoming vehicle or motorcyclist speed is about above 10 km/h (6 mph).

Stopping vehicle and ending brake control

2025 Genesis GV70 instrument cluster warning message image. The text 'Drive Carefully' is displayed at the top, with a rear view of a white vehicle positioned between lane markings on a dark background. Explains the warning message displayed when the vehicle stops after an emergency braking event.

2C_DriveCarefullyWarning

After your vehicle has stopped following an Emergency Braking event, the "Drive Carefully" warning message may appear on the instrument cluster.

Depress the brake pedal immediately and check the surroundings.

  • Braking control ends about 2 seconds after your vehicle is stopped following an Emergency Braking event.

If your vehicle or the oncoming vehicle is not driving straight, Direct Oncoming function warning and control may be late or may not operate.

The audible warning can be turned off while collision warning or emergency braking is operating by pressing the hazard warning flasher button.

Junction Crossing function

Junction Crossing function may warn and brake your vehicle depending on the collision risk level.

Collision warning

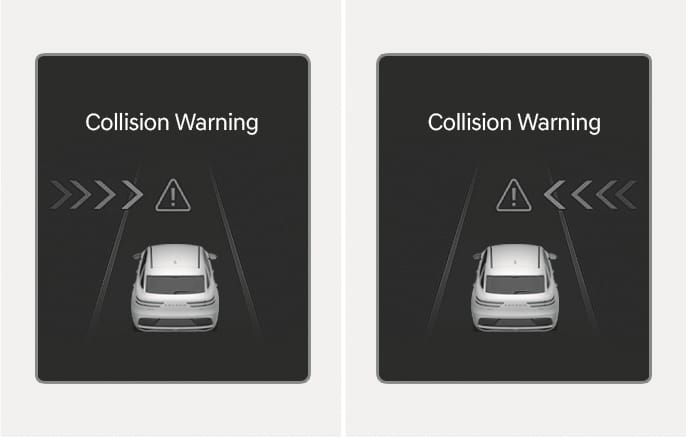

2025 Genesis GV70 instrument cluster display showing the Collision Warning interface. The screen features a vehicle image, a warning triangle icon, and the text 'Collision Warning' with directional chevron arrows. This illustrates the visual alerts provided when the Forward Collision-Avoidance Assist detects a collision risk.

2C_FCABasicCollisionWarningInfo_2

  • To warn the driver of a collision, the O warning light blinks and the "Collision Warning" warning message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates (if equipped).

  • The function operates when your vehicle speed is between about 10-55 km/h (6-34 mph) and the crossing vehicle speed is between about 10-60 km/h (6-37 mph).

Emergency braking

2025 Genesis GV70 Emergency Braking warning display image. Two screens display the text \'Emergency Braking\' and a triangle icon with an exclamation mark above a vehicle. Chevron arrows on the left point right, and arrows on the right point left. Explains the visual warnings provided when the emergency braking function operates.

2C_FCABasicEmergencyBrakingInfo_2

  • To warn the driver that emergency braking is assisted, the O warning light blinks and the "Emergency Braking" warning message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates (if equipped).

  • In an emergency braking situation, braking is assisted with strong braking power by the function to help prevent collision with the crossing vehicle.

  • The function operates when your vehicle speed is between about 10-55 km/h (6-34 mph) and the crossing vehicle speed is between about 10-40 km/h (6-25 mph).

Stopping vehicle and ending brake control

2025 Genesis GV70 instrument cluster warning message image. The text 'Drive Carefully' is displayed at the top, with a rear view of a white vehicle positioned between lane markings on a dark background. Explains the warning message displayed when the vehicle stops after an emergency braking event.

2C_DriveCarefullyWarning

After your vehicle has stopped following an Emergency Braking event, the "Drive Carefully" warning message may appear on the instrument cluster.

Depress the brake pedal immediately and check the surroundings.

  • Braking control ends about 2 seconds after your vehicle is stopped following an Emergency Braking event.

If your vehicle or the oncoming vehicle is not driving straight, Front Oncoming function's warning and vehicle control may be late or may not operate.

The audible warning can be turned off while collision warning or emergency braking is operating by pressing the hazard warning flasher button.

Lane-Change Oncoming function

Lane-Change Oncoming function warn and steer your vehicle depending on the collision risk levels.

Collision warning

2025 Genesis GV70 Junction Turning Collision Warning image. The instrument cluster displays 'Collision Warning' text. A graphic depicts the vehicle detecting an oncoming car on the left, highlighted with a warning triangle icon and radar waves. This explains the warning function for collision risks with oncoming vehicles while turning at a junction.

2C_FCAJunctionTurningCollisionWarningInfo

  • To warn the driver of a collision, the P warning light blinks and the "Collision Warning" warning message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates. (if equipped).

  • The function operates when your vehicle speed is between about 40-145 km/h (25-90 mph) and the oncoming vehicle or motorcyclist speed is about above 10 km/h (6 mph) and the relative speed with your vehicle is about below 200 km/h (124 mph).

Emergency steering

2025 Genesis GV70 Emergency Steering warning image. The text 'Emergency Steering' is displayed above a white vehicle, with a curved arrow indicating an evasive maneuver to avoid an oncoming vehicle icon marked with a warning triangle. This illustrates the emergency steering assist function.

2C_FCALaneChangeOncomingEmergencySteeringInfo

  • To warn the driver that emergency steering is assisted, the P warning light blinks and the "Emergency Steering" warning message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates (if equipped).

  • In an emergency steering situation, steering is assisted by the function to help prevent collision with the oncoming vehicle.

  • The function operates when your vehicle speed is between about 40-145 km/h (25-90 mph) and the oncoming vehicle or motorcyclist speed is about above 10 km/h (6 mph) and the relative speed with your vehicle is about below 200 km/h (124 mph).

Lane-Change Side function

Lane-Change Side function may warn and steer your vehicle depending on the collision risk level.

Collision warning

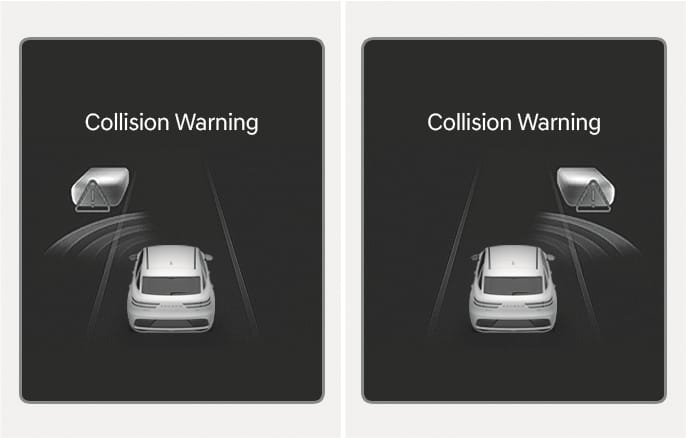

2025 Genesis GV70 Junction Turning Collision Warning image. The instrument cluster screen displays the text 'Collision Warning' and a graphic of the vehicle detecting an oncoming car on the left with a warning triangle icon. This explains the function that warns of collision risks with oncoming vehicles while turning at a junction.

2C_FCAJunctionTurningCollisionWarningInfo_1

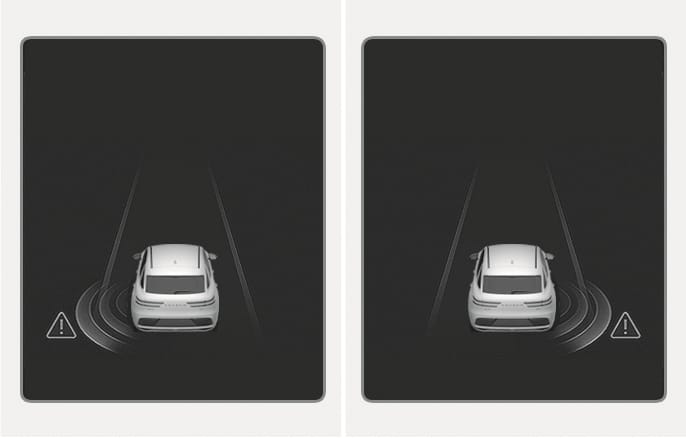

2025 Genesis GV70 Lane Change Side Collision Warning image. Two panels display a vehicle with curved detection waves and a triangle warning icon with an exclamation mark appearing on the left and right sides respectively. This explains the function that warns of side collision risks.

2C_FCALaneChangeSideCollisionWarningInfo_1

  • To warn the driver of a collision, the P warning light blinks and the "Collision Warning" warning message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates (if equipped).

  • The function operates when your vehicle speed is between about 40-145 km/h (25-90 mph).

Emergency steering

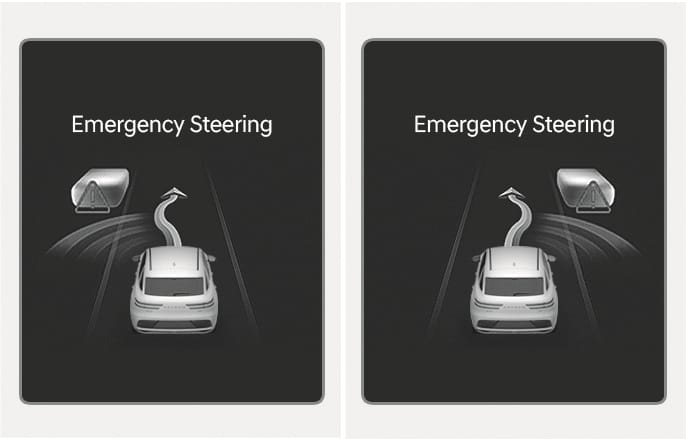

2025 Genesis GV70 Emergency Steering function image. The text 'Emergency Steering' is displayed above a vehicle. A curved arrow indicates the steering path to avoid an obstacle marked with a warning triangle. Explains the emergency steering assistance function.

2C_FCALaneChangeOncomingEmergencySteeringInfo_2

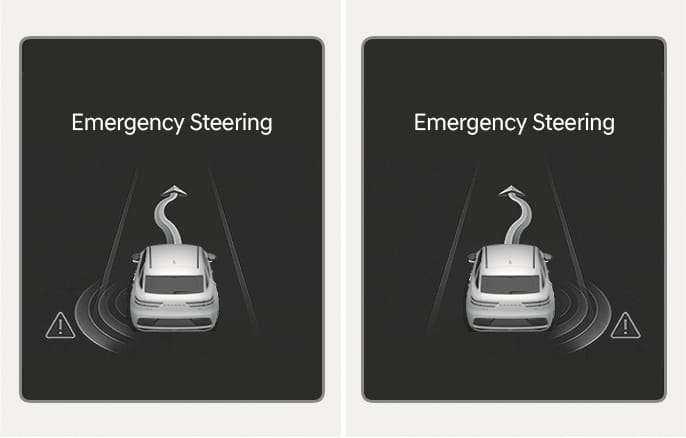

2025 Genesis GV70 Emergency Steering warning image. The instrument cluster displays 'Emergency Steering' text and a vehicle graphic with a curved arrow indicating an evasive steering maneuver. A warning triangle icon and radar waves are shown on the side. This describes the visual warning displayed when the system assists with emergency steering to avoid a collision.

2C_FCALaneChangeOncomingEmergencySteeringInfo_3

  • To warn the driver that emergency steering is assisted, the P warning light blinks and the "Emergency Steering" warning message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates (if equipped).

  • In an emergency steering situation, steering is assisted by the function to help prevent collision with the front-side vehicle.

  • The function operates when your vehicle speed is between about 40-145 km/h (25-90 mph) and front-side vehicle and motorcyclist is driving.

Lane-Change Side function does not operate if the vehicle speed of the preceding vehicle from the front side is 0 km/h (0 mph).

Evasive Steering Assist function

Evasive Steering Assist function may warn and steer your vehicle with Emergency steering.

Emergency Steering (Driver steering assist)

2025 Genesis GV70 Emergency Steering function image. The text 'Emergency Steering' is displayed above a vehicle. A curved arrow indicates the steering path to avoid an obstacle marked with a warning triangle. Explains the emergency steering assistance function.

2C_FCALaneChangeOncomingEmergencySteeringInfo_2

  • To warn the driver that emergency steering is assisted, the P warning light blinks and the "Emergency Steering" message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates (if equipped).

  • If there is a risk of collision with a vehicle, motorcyclist, pedestrian, or cyclist in front, the steering is assisted to help prevent collision when the driver steers the vehicle to avoid collision.

  • The function operates when your vehicle speed is between about 40-85 km/h (25-53 mph).

Emergency steering (Evasive steering assist)

2025 Genesis GV70 Emergency Steering warning image. The text 'Emergency Steering' is displayed above a white vehicle, with a curved arrow indicating an evasive maneuver to avoid an oncoming vehicle icon marked with a warning triangle. This illustrates the emergency steering assist function.

2C_FCALaneChangeOncomingEmergencySteeringInfo

  • To warn the driver that emergency steering is assisted, the P warning light blinks and the "Emergency Steering" message appears on the instrument cluster, an audible warning sounds, and the steering wheel vibrates (if equipped).

  • The function operates when your vehicle speed is between about 65-75 km/h (40-47 mph).

  • The recognized pedestrian or cyclist moves in the same direction as your vehicle, or in the opposite direction. In addition, there is sufficient space for an evasive movement for your vehicle. However, this function may not operate for pedestrians or cyclists moving in the horizontal direction.

  • If there is high risk of collision with a pedestrian and cyclist in front, and the vehicle speed to operate emergency braking has exceeded, the steering is assisted to help prevent collision when there is space to avoid collision in the driving lane.

  • The steering wheel may turn automatically when emergency steering is operating.

  • Emergency steering automatically cancels when risk factors disappear. If necessary, the driver must steer the vehicle.

  • Emergency steering may not operate or may cancel during operation if the steering wheel is held tight or steered in the opposite direction.

  • When steering is assisted to avoid collision with a vehicle, motorcyclist, pedestrian and cyclist, Evasive steering assist will be cancelled if collisions with other objects (vehicles, motorcyclist, pedestrians, or cyclists) are expected.

  • Evasive steering assist may not operate if space to avoid collision in the driving lane is insufficient.

  • When driving at night, the recognition performance for the motorcyclist may decrease, that may temporarily limit or disable the Forward Collision-Avoidance Assist.

For more information on warning messages, refer to Collision Warning in "Basic function".

Forward Collision-Avoidance Assist may not operate in all situations and cannot avoid all collisions.

To prevent serious injury or death:

  • Only change the settings after parking your vehicle at a safe location.

  • Forward Collision-Avoidance Assist does not operate in all situations or cannot avoid all collisions.

  • Control your vehicle at all times. Do not depend on Forward Collision-Avoidance Assist to avoid a collision. Always maintain a safe distance from the vehicles ahead and reduce your vehicle speed as needed.

  • Never attempt to activate Forward Collision-Avoidance Assist by intentionally driving toward people, animals, objects, or other vehicles.

  • Forward Collision-Avoidance Assist may not assist braking your vehicle if you depress the brake pedal sufficiently in response to the potential hazard detected by the function to avoid all collisions.

  • Depending on the road and driving conditions, Forward Collision-Avoidance Assist may warn the driver late or may not warn the driver.

  • During Forward Collision-Avoidance Assist operation, your vehicle may stop suddenly. Always wear your seat belt, check your passengers have their seat belts fastened and secure loose objects that may become projectiles.

  • When other system’s warning message appears or audible warning is heard, Forward Collision-Avoidance Assist may not warn you.

  • You may not hear the audible warning of Forward Collision-Avoidance Assist if the surrounding environment is too noisy.

  • Forward Collision-Avoidance Assist may stop operating, or may not operate properly, or may operate unnecessarily depending on the road conditions and the surroundings.

  • Even if there is a problem with Forward Collision-Avoidance Assist, the vehicle's basic braking system operates normally.

  • During emergency braking, braking by Forward Collision-Avoidance Assist automatically cancels if you excessively depress the accelerator pedal or sharply steer your vehicle.

  • Depending on the condition of the vehicle, motorcyclist, pedestrian, and cyclist detected in front, and the surroundings, the speed ranges Forward Collision-Avoidance Assist may be reduced. Forward Collision-Avoidance Assist may only warn the driver, or it may not operate.

  • Forward Collision-Avoidance Assist operates only under certain conditions that determines the risk level:

    • Condition of other vehicles

    • The direction vehicles are driven

    • Vehicle speed

    • Surroundings

  • If your vehicle speed is too fast or the speed difference with the other vehicle, motorcyclist, or cyclist is large, Forward Collision-Avoidance Assist may be limited or may not operate properly.

  • When a collision with a surrounding vehicle is expected, Lane-Change Oncoming, Lane-Change Side and Evasive Steering Assist does not assist you with steering but only warn the you of a collision (if equipped).

  • When a collision is imminent, braking may be assisted if you depress the brake pedal insufficiently.

  • The images and colors in the instrument cluster may differ depending on the cluster type or theme selected from the settings menu.
