View modes

View modes

Explanation

Normal view

Show trip computer or widget on center without background information.

Driving Assist view

Driving Assist view displays the status of the vehicle’s Driver Assistance systems.

Map view

Show map and navigation related information.

Wide Map view

Show map and navigation related information.

AR view

Show map and navigation related information.

The information provided may differ depending on which functions are available on your vehicle.

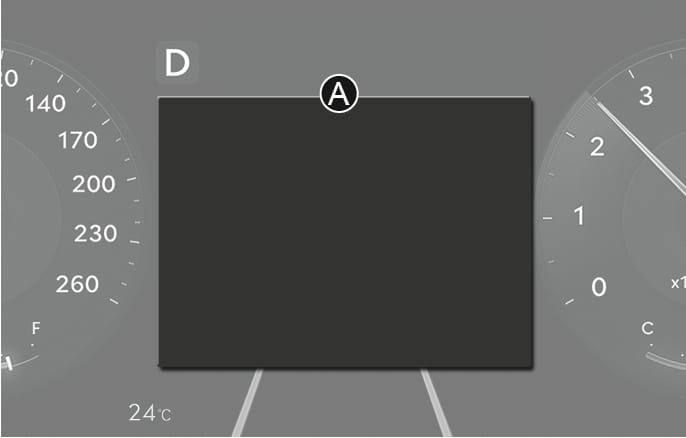

2025 Genesis GV70 Instrument Cluster View Modes image. The central display screen is marked with callout (A) between the gauges. It describes the location where Normal, Driving Assist, Map, and AR view modes are displayed.

2C_DrivingAssistMode

Normal view, Driving Assist view, Map view, Wide Map view, and AR view mode are displayed in the instrument cluster [A].

Normal view is also shown in the widget mode.

Normal view

In the Normal view, using the Ɯ (Optical mouse), you may change through items in the following order.

Current trip

Type A

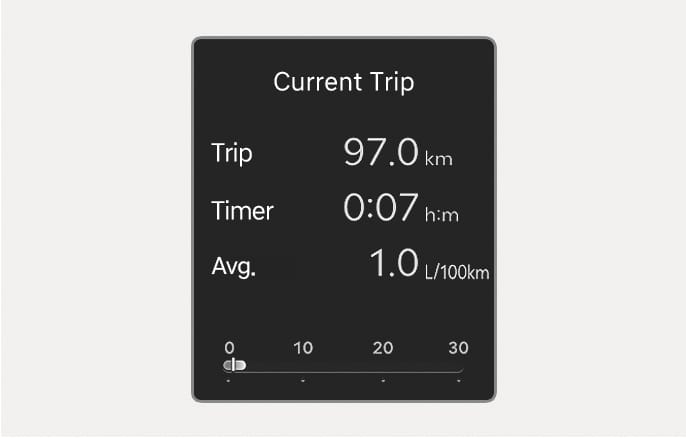

2025 Genesis GV70 Current Trip information display image. The screen displays 'Current Trip' with 'Trip' 97.0 km, 'Timer' 0:07 h:m, and 'Avg.' 1.0 L/100km. An instant fuel economy bar graph is located at the bottom. Explains the function displaying trip distance, driving time, and average fuel economy.

2C_DrivingInfo

Type B

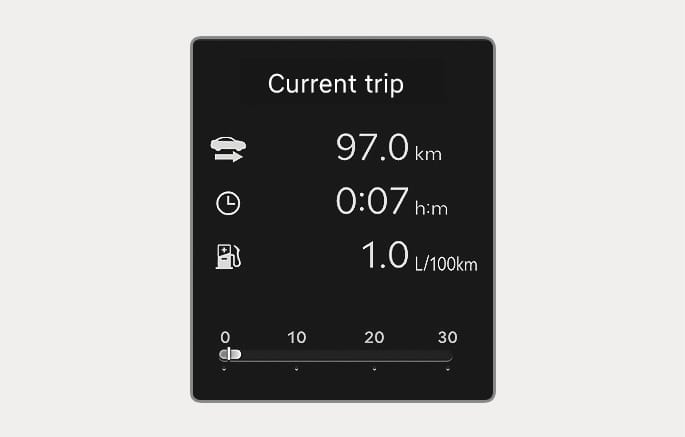

2025 Genesis GV70 Current trip information display image. The screen displays 'Current trip' with '97.0 km' for distance, '0:07 h:m' for time, and '1.0 L/100km' for fuel economy, accompanied by icons. A horizontal gauge at the bottom shows instant fuel economy. Explains the function displaying driving data for the current trip.

2C_DrivingInfo_1

Trip distance, total driving time, average fuel economy, and instant fuel economy are displayed.

The information is combined for each ignition cycle.

Current trip is initialized when the vehicle is turned off and the driver's door is open, or when the vehicle is turned on 3 minutes after the vehicle is turned off.

To reset manually, press the Ɯ button two times on the steering wheel when "Current Trip" appears.

Since refuelling

Type A

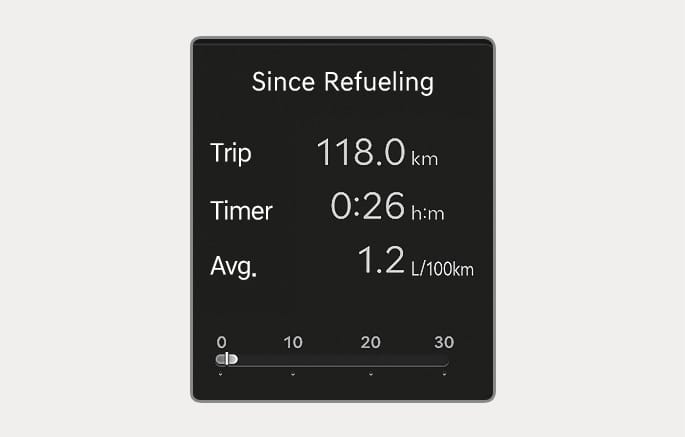

2025 Genesis GV70 Since Refueling trip computer screen image. The display shows 'Since Refueling' with 'Trip' 118.0 km, 'Timer' 0:26 h:m, and 'Avg.' 1.2 L/100km. A fuel economy gauge is at the bottom. Explains the display of driving information accumulated after refueling.

2C_InfoAfterRefuel

Type B

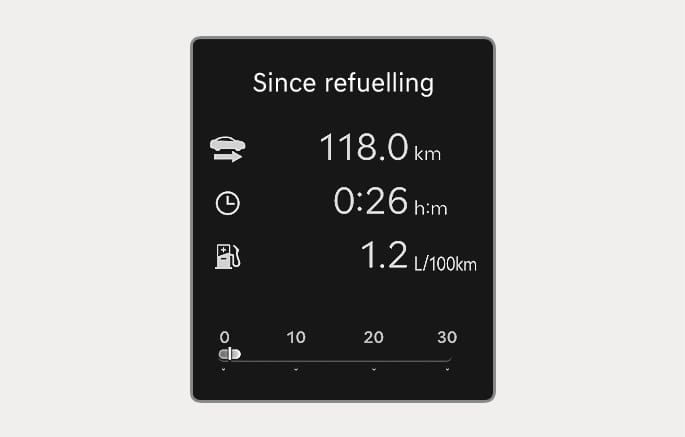

2025 Genesis GV70 instrument cluster Since refuelling Type B display image. The screen shows 'Since refuelling' with '118.0 km', '0:26 h:m', and '1.2 L/100km' data alongside icons and a bar graph. Explains the function displaying driving information accumulated after refueling.

2C_InfoAfterRefuel_1

After the vehicle has been refueled, the trip distance, total driving time, average fuel economy, and instant fuel economy are displayed.

To reset manually, press the Ɯ button two times on the steering wheel when "Since Refuelling" appears.

Since last reset

Type A
2025 Genesis GV70 instrument cluster Since Last Reset screen image. It displays 'Trip' 118.0 km, 'Timer' 0:26 h:m, and 'Avg.' 1.2 L/100km under the title 'Since Last Reset', with an instant fuel economy bar at the bottom. Explains the function of displaying accumulated driving information.

2C_AccumulatedInfo

Type B

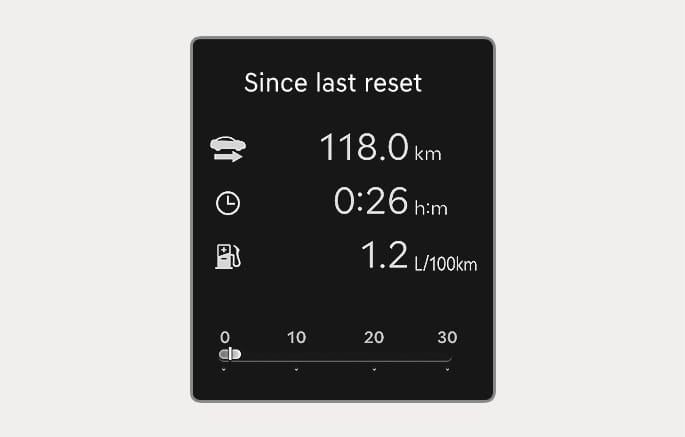

2025 Genesis GV70 Since last reset display image. The screen shows 'Since last reset' with '118.0 km' distance, '0:26 h:m' time, and '1.2 L/100km' fuel economy alongside icons. An instant fuel economy gauge is at the bottom. Explains the function of displaying accumulated driving information since the last reset.

2C_AccumulatedInfo_1

Accumulated trip distance, driving time, average fuel economy, and instant fuel economy are displayed.

The information is accumulated starting from the last reset.

To reset manually, press the Ɯ button two times on the steering wheel when "Since Last Reset" appears.

Auto stop

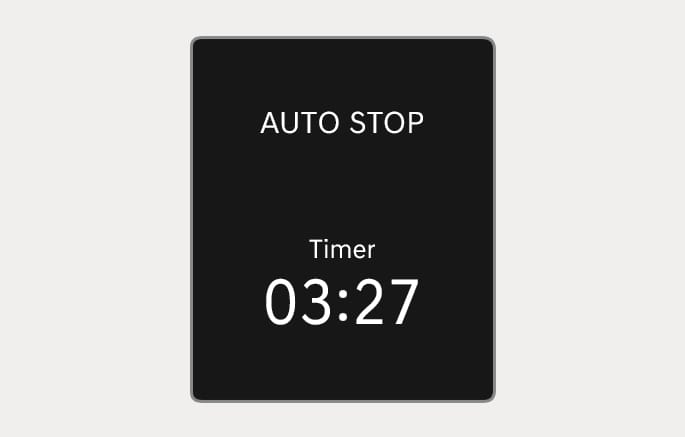

2025 Genesis GV70 Auto Stop display image. The screen shows the text 'AUTO STOP' and 'Timer' with the time '03:27'. It explains the function of displaying the elapsed time of engine stop by the Idle Stop and Go system.

2C_ISGAcuumInfo

Displays the elapsed time of engine stop by the Idle Stop and Go system.

To reset manually, press the Ɯ button two times on the steering wheel when "AUTO STOP" appears.

For more information, refer to the "Idle Stop and Go (ISG)" section in chapter 6.

Drive power distribution

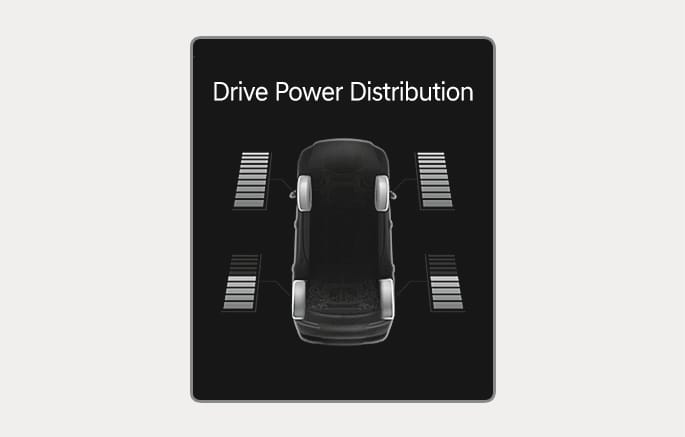

2025 Genesis GV70 Drive Power Distribution display image. A top-down vehicle silhouette is centered with bar graphs next to each of the four wheels indicating torque distribution. The text 'Drive Power Distribution' is displayed at the top. This explains the feature that displays information related to AWD driving force distribution.

2C_DrivingDistributionInfo

Displays information related to AWD driving force distribution.

For more information, refer to the "Drive mode integrated control system (AWD)" section in chapter 6.

Tire pressure

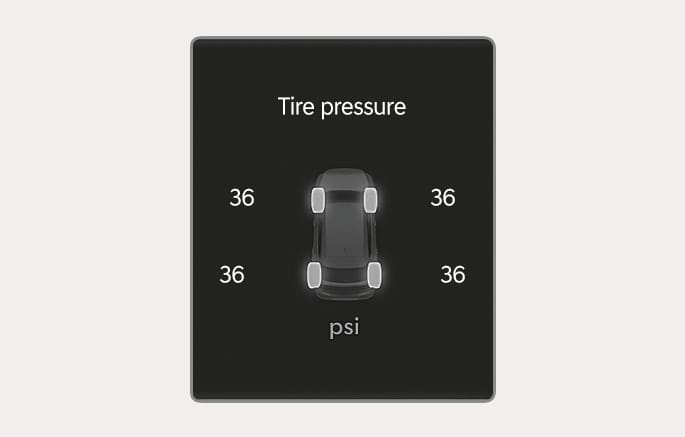

2025 Genesis GV70 Tire pressure display image. The screen displays 'Tire pressure' text, a top-down vehicle graphic, and the number '36' next to each tire with the 'psi' unit. This explains the function displaying real-time pressure for each wheel.

2C_TirePressureInfo

The tire pressure of each tire is displayed.

For more information, refer to the "Tire Pressure Monitoring System (TPMS)" section in chapter 8.

Driving Assist view

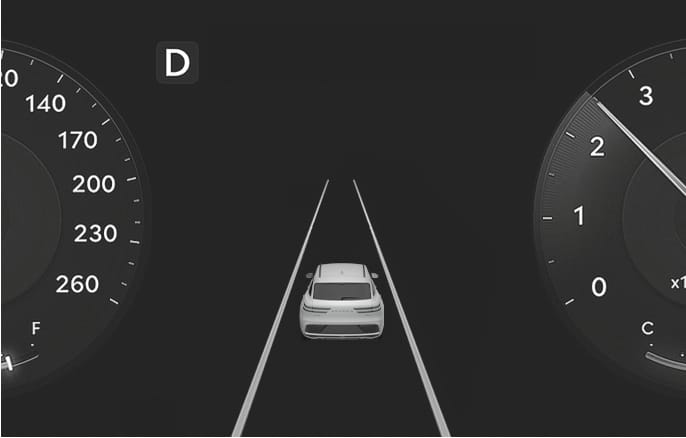

2025 Genesis GV70 instrument cluster Driving Assist view image. A 3D vehicle graphic appears between lane lines in the center, flanked by partial speedometer and tachometer gauges with a 'D' gear indicator. This explains the view mode displaying the status of Driver Assistance systems.

2C_DrivingAssistMode_1

Displays the state of Smart Cruise Control, Lane Following Assist, Lane Keeping Assist, Highway Driving Assist, etc., when Driving Assist view is selected.

For more information, refer to each system information section in chapter 7.
