Tire Pressure Monitoring System (TPMS)

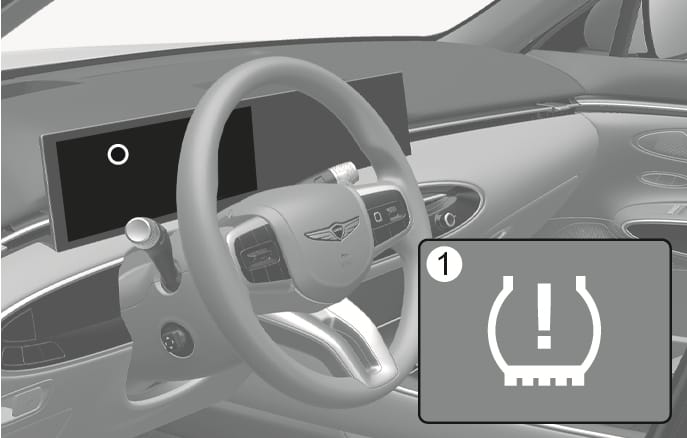

2025 Genesis GV70 Tire Pressure Monitoring System image. The dashboard displays the warning light position on the cluster. A callout (1) shows the Low Tire Pressure Telltale icon, a tire cross-section with an exclamation mark. Explains the location and appearance of the TPMS malfunction indicator.

2C_TPMSWarningLampOverview

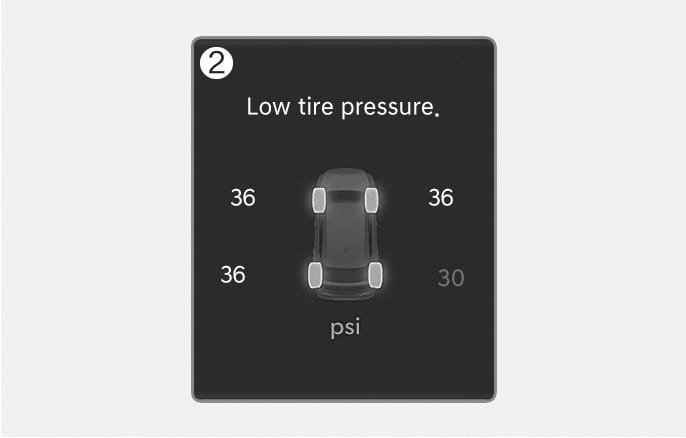

2025 Genesis GV70 Low Tire Pressure Position Telltale image. The cluster display shows the text 'Low tire pressure.' and a vehicle graphic surrounded by pressure values. The rear right tire reads '30' psi, differing from the '36' psi on other tires. The number (2) indicates the Low Tire Pressure Position Telltale. Explains the function of displaying the position and pressure of an underinflated tire.

2C_TireLowPressureInfo

  1. Low Tire Pressure Telltale/TPMS Malfunction Indicator
  2. Low Tire Pressure Position Telltale and Tire Pressure Telltale (Shown on the Cluster display)
