Surround View Monitor settings

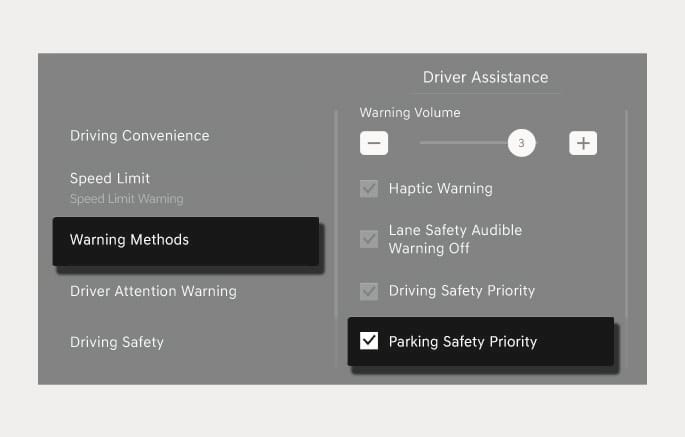

OIK075007N
The Warning Methods can be set with the engine on.
-
Parking Safety Priority: Select Setup > Vehicle > Driver Assistance > Warning Methods > Parking Safety Priority from the Settings menu in the infotainment system.
If Parking Safety Priority is enabled, the vehicle lowers all other audio volumes when Surround View Monitor is operating.
-
If you change the Warning Methods, the Warning Methods of other Driver Assistance systems may change.
-
If the engine is restarted, Warning Methods will maintain the last setting.
-
The setting menu may not exist based on vehicle specification.

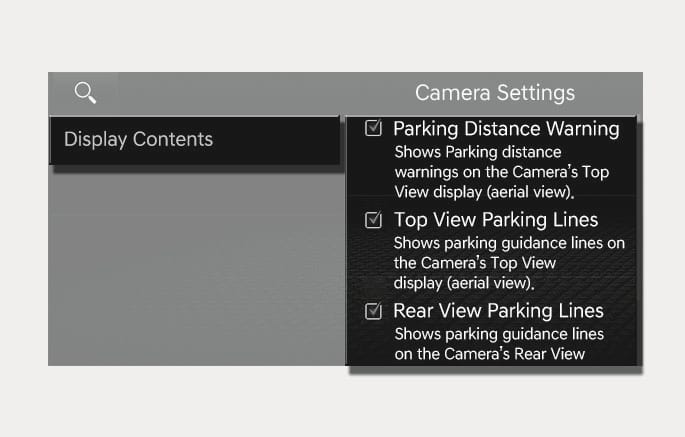

OIK073236N
You can change Surround View Monitor Display Contents by touching the setup icon (
) on the screen while Surround View Monitor is operating, or selecting Setup > Vehicle > Driver Assistance > Parking Safety > Camera Settings from the Settings menu in the infotainment system while the engine is on.
-
In the Display Contents, you can change settings for Parking Distance Warning, Top View Parking Lines and Rear View Parking Lines.
The setting menu may not exist based on vehicle specification.
Parking Distance Warning
When the Parking Distance Warning is selected, parking distance warning appears on the right side of the Surround View Monitor screen.
Top View Parking Lines
When the Top View Parking Lines is selected, parking guidance appears on the right side of the Surround View Monitor screen.
The horizontal guideline of the Rear Top View Parking Guidance shows the distance of 1.6 ft. (0.5 m) and 6.6 ft. (2 m) from the vehicle.
Rear View Parking Lines
When the Rear View Parking Lines is selected, parking guidance appears in the rear view.
The horizontal guideline shows the distance of 1.6 ft. (0.5 m), 3.3 ft. (1 m) and 7.6 ft. (2.3 m).
Display settings
You can set the brightness (day/night) and contrast of the camera image in Display settings.
The Display settings menu may not exist based on vehicle specification.

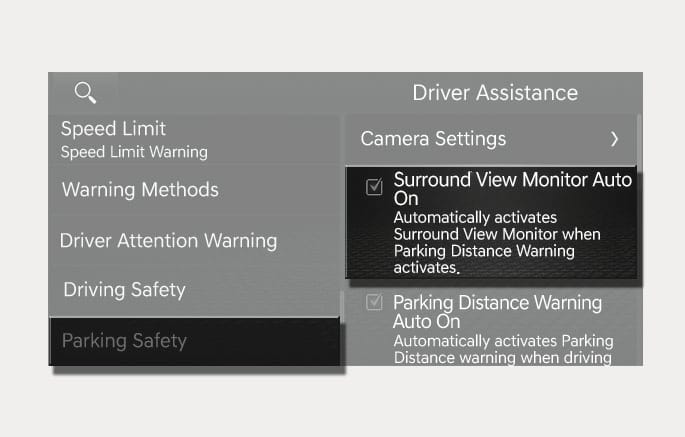

OIK073232N
With the engine on, select Setup > Vehicle > Driver Assistance > Parking Safety > Surround View Monitor Auto On from the Settings menu in the infotainment system to use the function.
For more information on Surround View Monitor auto On, refer to the "Surround View Monitor operation" in this chapter.
