Surround View Monitor Operation

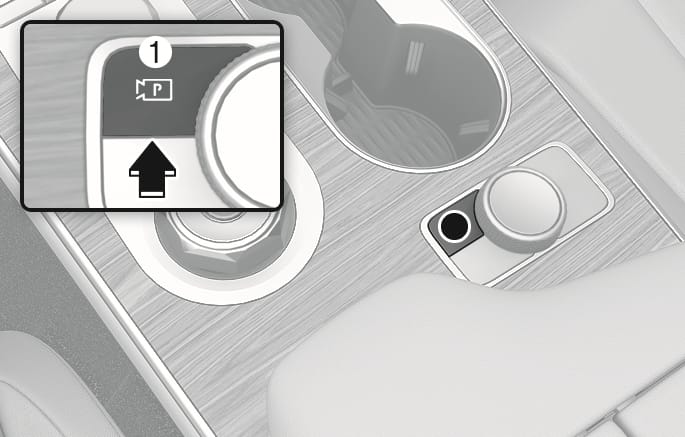

Press the Parking/View button (1) to turn on Surround View Monitor.

Press the button again to turn off the function.

2C_ParkingViewButton

Front view

2C_SVMFrontViewInfo

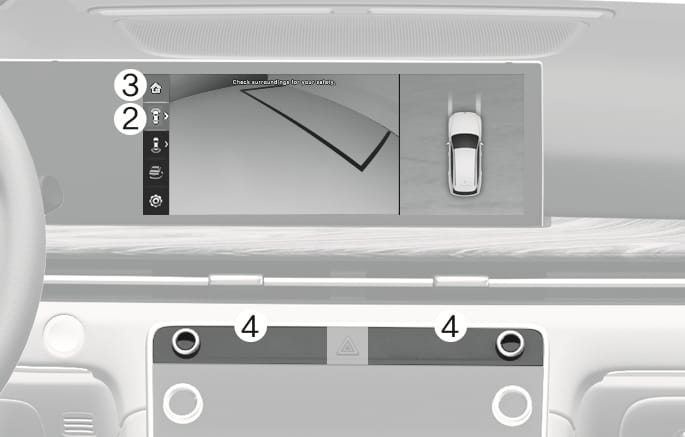

The front view appears on the screen when the gear is in N (Neutral) or D (Drive) to assist parking. The front view has top view, front view, side view, and 3D view.

View modes can be selected by pressing the view buttons (2) on the Surround View Monitor screen.

Turns on if:

  • You shift the gear from R (Reverse) to N (Neutral) or D (Drive).

  • You press the Parking/View button (1) when the gear is in P (Park), N (Neutral), or D (Drive), and your vehicle speed is 6 mph (10 km/h) or less.

  • Surround View Monitor Auto On function is operating.

    (Surround View Monitor Auto On must be selected from the Settings menu.)

When the front view while parking is turned on, the previous view mode will be displayed.

Turns off if:

  • You shift the gear to P (Park) or R (Reverse).

  • You press the Parking/View button (1).

  • You press the Home button (3).

  • You press the infotainment system buttons (4).

  • Your vehicle speed is above 6 mph (10 km/h).

Surround View Monitor turns off when vehicle speed is above 10 km/h. The function does not turn on again even if vehicle speed is below 6 mph (10 km/h).

Rear view

2C_SVMRearViewInfo

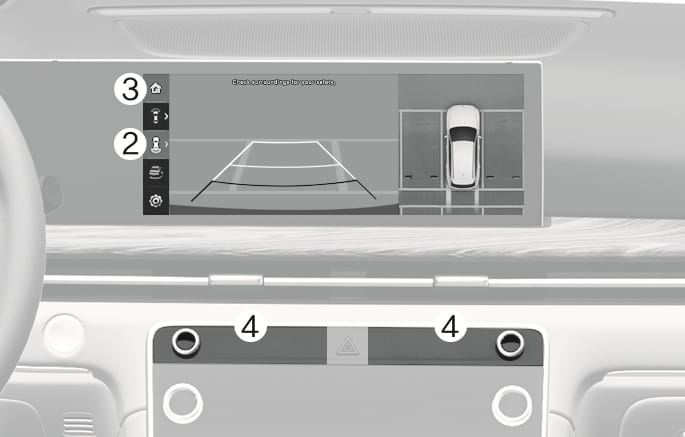

The rear view appears on the screen to assist parking. The rear view has top view, rear view, side view, and 3D view.

View modes can be selected by pressing the view buttons (2) on the Surround View Monitor screen.

Turns on if:

  • You shift the gear to R (Reverse).

  • You press the Parking/View button (1) when the gear is in P (Park), N (Neutral), or D (Drive), and your vehicle speed is below 6 mph (10 km/h).

Turns off if:

  • You shift the gear from N (Neutral) or D (Drive) to P (Park).

  • You press the Parking/View button (1) when the gear is in P (Park), N (Neutral), or D (Drive).

  • You press the Home button (3) when the gear is in P (Park), N (Neutral), or D (Drive).

  • You press the infotainment system buttons (4) when the gear is in P (Park), N (Neutral), or D (Drive).

  • Your vehicle speed is above 6 mph (10 km/h) when the gear is in D (Drive).

  • You shift the gear from R (Reverse) to P (Park).

  • The rear view is always displayed when the gear is in R (Reverse).

  • The rear view cannot be turned off when the gear is in R (Reverse) even if the infotainment system buttons (4) are pressed.

3D view

2C_SVM3DViewInfo

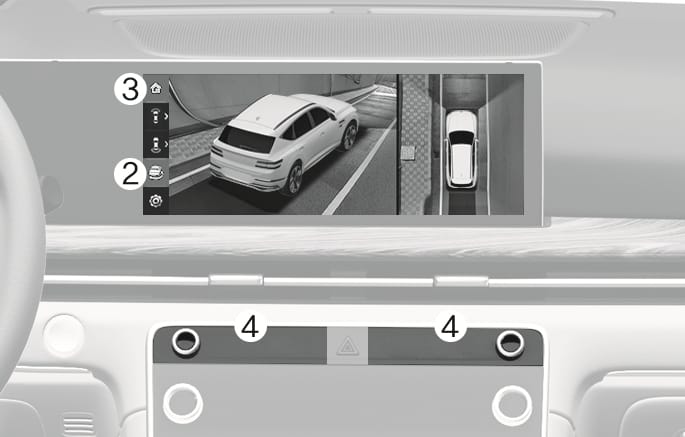

The 3D view shows the image around the vehicle from various angles.

Tap the screen to change vehicle angles. Press the 3D view button (2) again to return to the initial angle.

Turns on if:

  • You press the 3D view button (2) when the gear is in P (Park), N (Neutral), or D (Drive), and your vehicle speed is below 6 mph (10 km/h).

  • You press the 3D view button (2) when Surround View Monitor is turned on when the gear is in R (Reverse).

Turns off if:

  • You shift the gear from N (Neutral) or D (Drive) to P (Park).

  • You press the Parking/View button (1) when the gear is in P (Park), N (Neutral), or D (Drive).

  • You press the Home button (3) when the gear is in P (Park), N (Neutral), or D (Drive).

  • You press the infotainment system buttons (4) when the gear is in P (Park), N (Neutral), or D (Drive).

  • Your vehicle speed is above 6 mph (10 km/h) when the gear is in D (Drive).

  • You shift the gear from R (Reverse) to P (Park).

3D view does not display guidelines.
