How to Adjust Tire Pressure

  1. After driving about 4-6 miles (7-10 km or about 10 minutes), stop at a safe location.

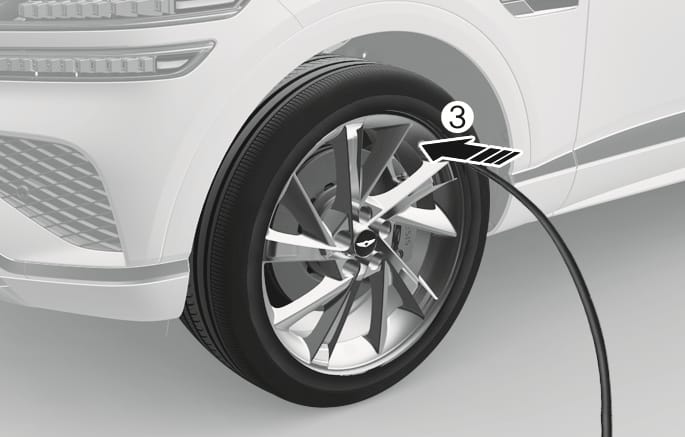

  2. Connect the filling hose (3) directly into the tire valve.

    2C_TMKProcedure_6

  3. Remove the engine compartment fuse box cover and open the service cover.

    Connect cables (4) to the jumper terminals in numerical order.

  4. Adjust the tire inflation pressure to the recommended tire inflation.

    With the engine running, proceed as follows:

To increase the inflation pressure:

Switch on the compressor. To check the current inflation pressure setting, briefly switch off the compressor.

To reduce the inflation pressure:

Press the button (9) on the compressor.

Do not let the compressor run for more than 10 minutes, otherwise the device will overheat and may be damaged.

The pressure gauge may show higher than actual reading when the compressor is running. To get an accurate tire pressure, the compressor needs to be turned off.

Do not use the sealant when the tire pressure only needs to be adjusted.

The tire inflation pressure must be inflated to the proper pressure (Refer to the "Tires and Wheels" section in chapter 2). If it is not inflated to the proper pressure, do not continue driving.

Call for road side service or towing.
