Filter Replacement

2.5 T-GDI

The air cleaner filter can be cleaned for inspection using compressed air. Do not attempt to wash or rinse it, because water can damage the filter. If soiled, replace the air cleaner filter.

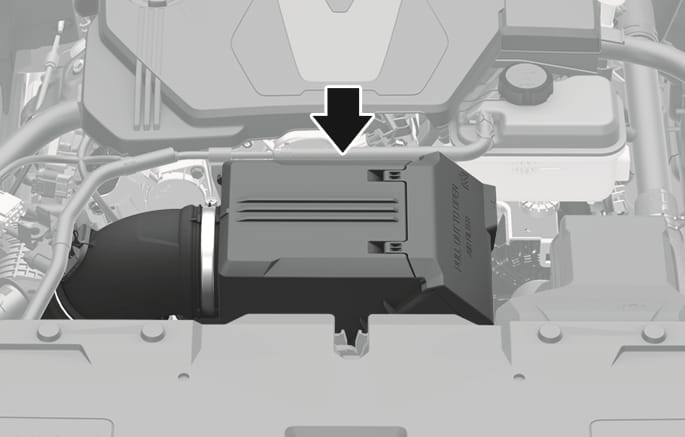

2C_AirCleaner

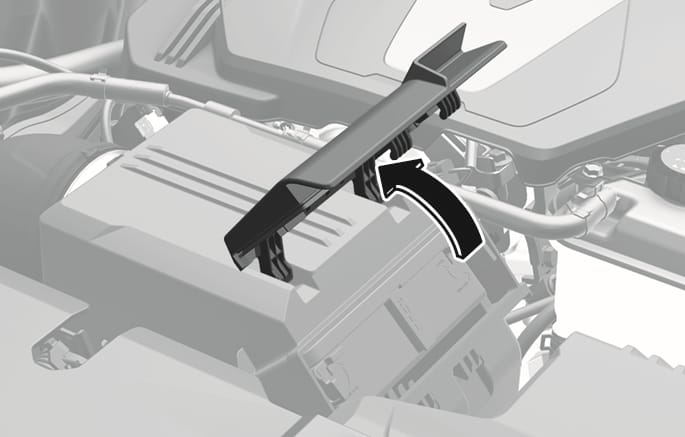

  1. Pull up the air cleaner cover.

    2C_AirCleanerReplacementProcedure_1

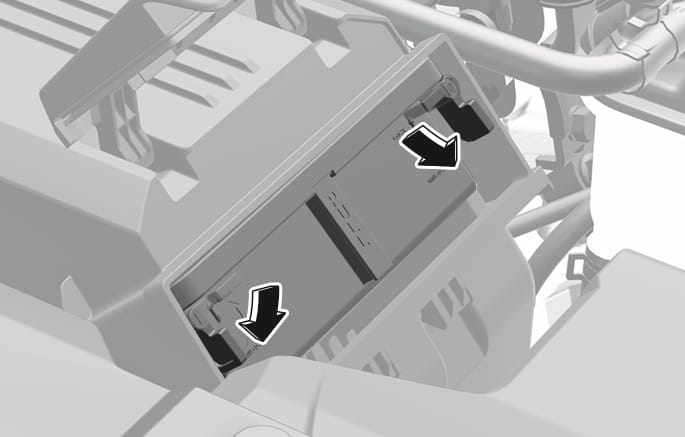

  2. Pull down the lever to the UNLOCK position.

    2C_AirCleanerReplacementProcedure_2

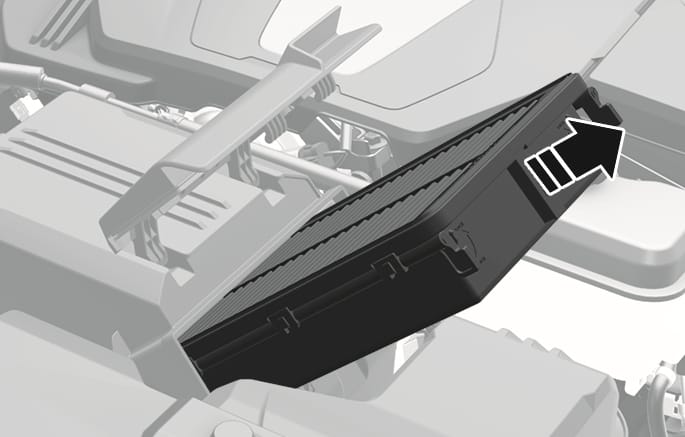

  3. Replace the air cleaner filter.

    2C_AirCleanerReplacementProcedure_3

  4. Reassemble the air cleaner filter cover in the reverse order.

    • Check that the cover is firmly installed.

3.5 T-GDI

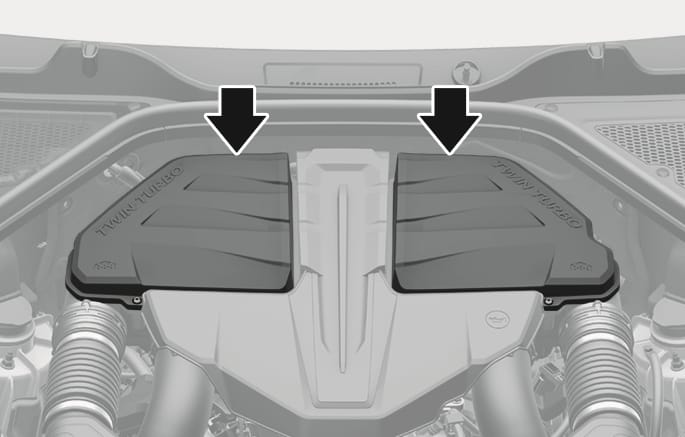

2C_AirCleaner_1

Do not attempt to wash or rinse it, because water can damage the filter. If soiled, the air cleaner filter must be replaced. Visit an authorized retailer of Genesis Branded products to replace air cleaner filter. Replace the air cleaner filter according to the Maintenance Schedule.

If the vehicle is operated in extremely dusty or sandy areas, replace the air cleaner filter more often than the usual recommended intervals (Refer to the "Maintenance Under Severe Usage Conditions" section in this chapter).

  • Do not drive with the air cleaner filter removed. This may result in excessive engine wear.

  • When removing the air cleaner filter, be careful that dust or dirt does not enter the air intake. It may cause damage.

  • Use Genesis genuine parts for replacement from an authorized retailer of Genesis Branded products. Use of non-genuine parts may damage the air flow sensor.
