Opening the Fuel Filler Door

  1. Shift the gear to the P (Park) position and turn off the engine.

  2. Make sure that the doors are unlocked.

  3. Press the rear center edge of the fuel filler door [A].

    2C_FuelInletDoor

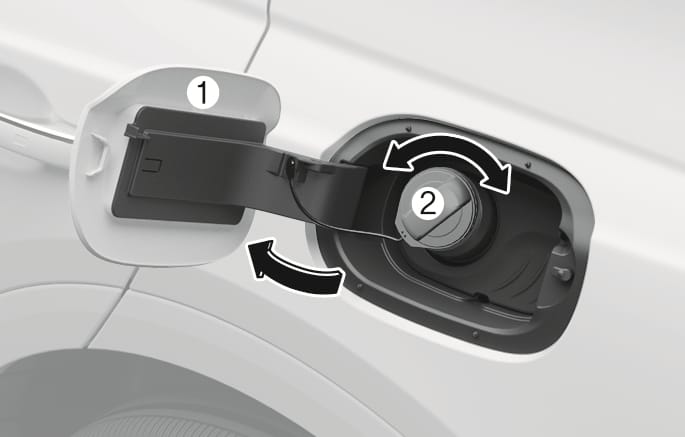

  4. Pull the fuel filler door (1) outward to access the fuel tank cap.

  5. To remove the fuel tank cap (2), turn it counterclockwise. Hissing noise is heard because the pressure inside the tank equalizes.

    2C_FuelInletDoorOpen

  6. Place the cap on the fuel filler door.

  • The fuel filler door unlocks when the doors are unlocked.

    To unlock fuel filler door:

    • Press the unlock button on your smart key.

    • Press the central door unlock switch on the driver’s door.

    • Set the auto door unlock feature Upon vehicle off in the infotainment system.

      When all doors are automatically unlocked when the vehicle is turned off, the fuel filler door is automatically unlocked.

  • If the fuel filler door does not open because of electrical failure or other reasons, have your vehicle inspected by an authorized retailer of Genesis Branded products.

If the fuel filler door does not open because ice has formed around it, tap lightly or push on the door to break the ice and release the door. Do not open the door. If necessary, spray around the door with an approved deicer fluid (do not use radiator antifreeze) or move the vehicle to a warm place and allow the ice to melt.
