Head restraint

The vehicle's front and rear (second row and/or third row) seats have adjustable head restraints. The head restraints are designed to help protect passengers from whiplash and other neck and spinal injuries during a collision, especially a rear impact collision. When there are no occupants in the rear seats, adjust the rear head restraints to the lowest height to improve the driver's visibility.

To help reduce the risk of serious injury or death in an accident, take the following precautions when adjusting your head restraints:

  • Always adjust the head restraints properly for all passengers BEFORE starting the vehicle.

  • Never let anyone ride in a seat with the head restraint removed or reversed.

  • Adjust the head restraints so that the middle of the head restraint is at the same height as the top of the eyes.

    2C_HeadrestRightPosition

  • Never adjust the driver's head restraint when the vehicle is moving.

  • Adjust the head restraint as close to the passenger's head as possible.

  • Make sure the head restraint is locked in place after adjustment.

2C_RearHeadrestCaution

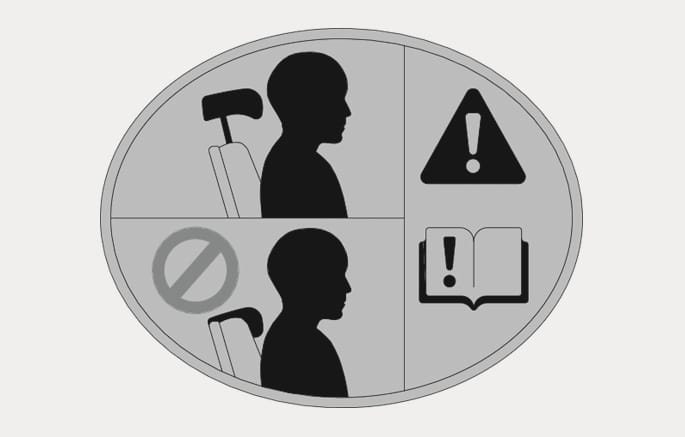

When passengers are sitting on the rear seats, always raise the head restraints above the lowest stored position.

When there is no occupant in the rear seats, adjust the height of the head restraint to the lowest position. The rear seat head restraint can reduce the visibility of the rear area.

To prevent damage, NEVER hit or pull on the head restraints.

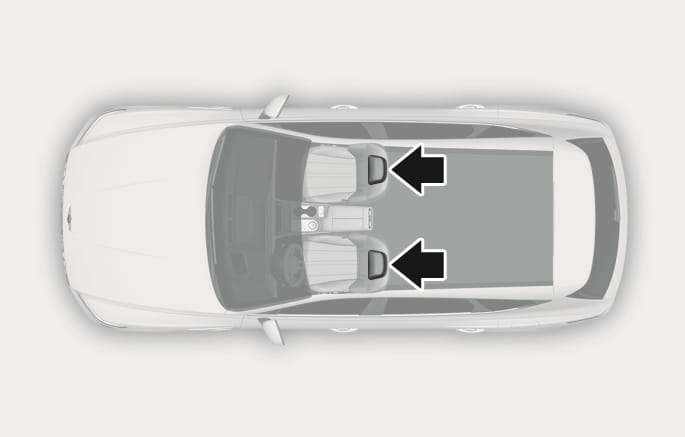

Front seat head restraints

2C_HeadrestOverview

The driver's and front passenger's seats are equipped with adjustable head restraints for passenger safety and comfort.

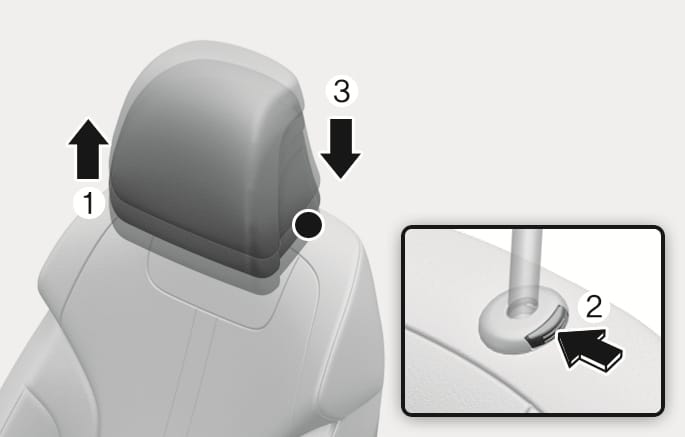

Adjusting the height up and down

2C_AdjustHeadrestUpDown

To raise the head restraint:

  1. Pull it up to the desired position (1).

To lower the head restraint:

  1. Push and hold the release button (2) on the head restraint support.

  2. Lower the head restraint to the desired position (3).

Forward and rearward adjustment

2C_AdjustHeadrestForwardBackward

The head restraint may be adjusted forward to 3 different positions by pulling the head restraint forward to the desired detent. To adjust the head restraint to its furthest rearwards position, pull it fully forward to the farthest position and release it.

2C_AdjustHeadrestCaution

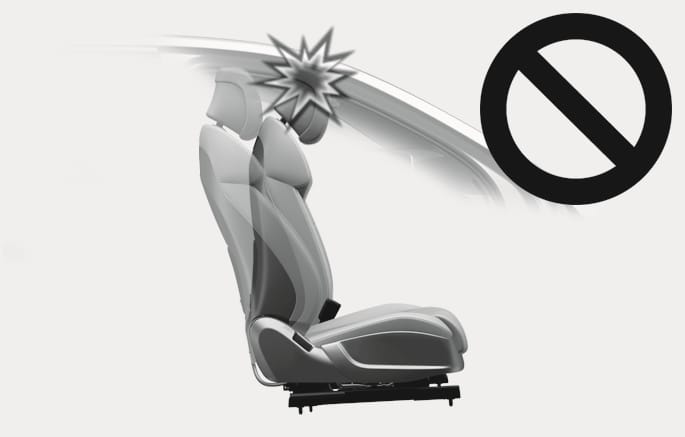

If you recline the seatback towards the front with the head restraint and seat cushion raised, the head restraint may come in contact with the sunvisor or other parts of the vehicle.

Removal/Reinstall

2C_RemoveHeadrestAuto

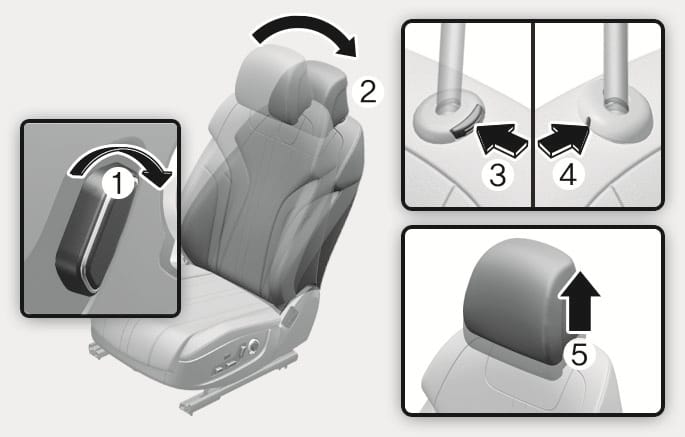

To remove the head restraint:

  1. Recline the seatback (2) with the seatback angle switch (1).

  2. While pressing the head restraint release button (3) after raising the head restraint to its highest position, insert a thin-pointed tool into the opposite side head restraint adjustment hole (4) and then pull the head restraint up to remove it (5).

2C_InstallHeadrestAuto

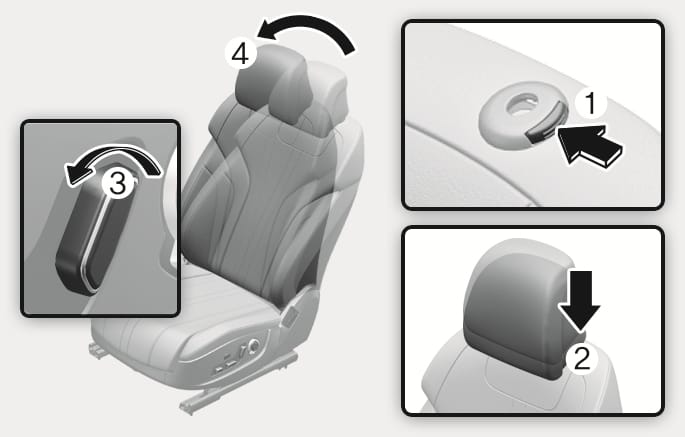

To reinstall the head restraint:

  1. Recline the seatback.

  2. Put the head restraint poles (2) into the holes while pressing the release button (1).

  3. Adjust the head restraint to the appropriate height.

  4. Return the seatback (4) with the seatback angle switch (3).

Always make sure the head restraint is locked in place and properly adjusted for the passenger.

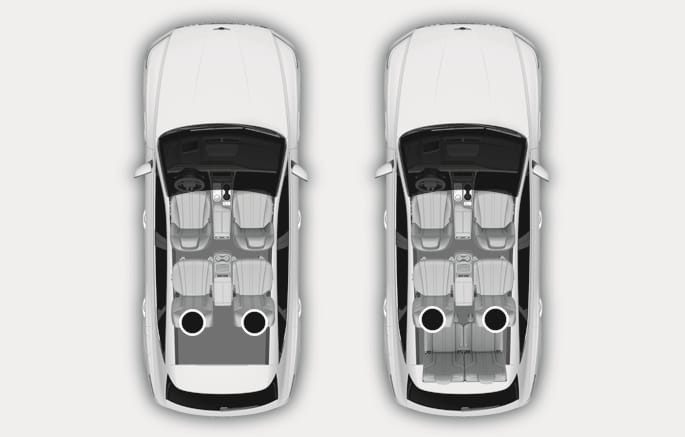

Second row seat head restraints
6-seater

2C_RearHeadrestPosition

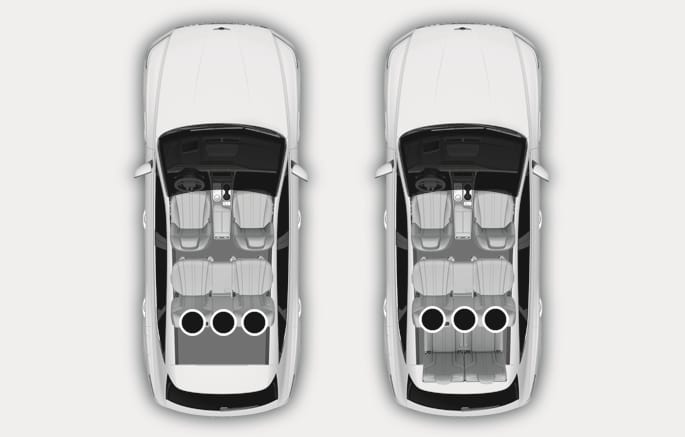

7-seater

2C_RearHeadrestPosition_2

The second row seats are equipped with head restraints in all the seating positions for the passenger's safety and comfort.

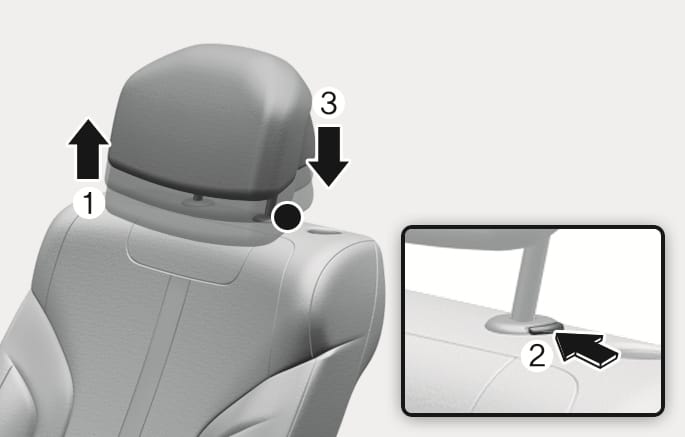

Adjusting the height up and down

2C_AdjustRearHeadrestUpDown

To raise the head restraint:

  1. Pull it up to the desired position (1).

To lower the head restraint:

  1. Push and hold the release button (2) on the head restraint support.

  2. Lower the head restraint to the desired position (3).

Removal/Reinstallation

2C_AdjustRearHeadrestUpDown_1

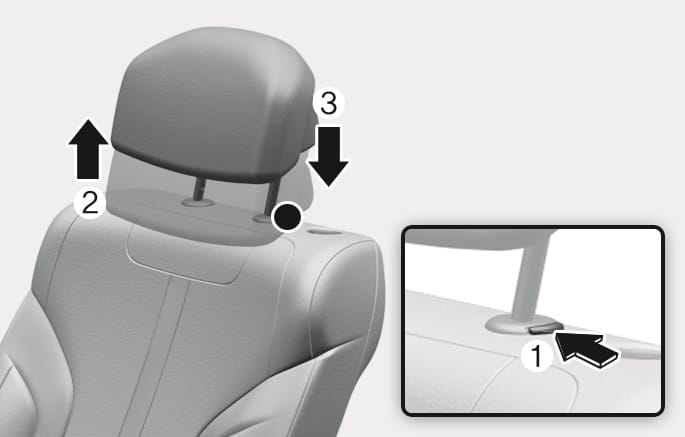

To remove the head restraint:

  1. Raise the head restraint as far as it can go.

  2. Press the head restraint release button (1) while pulling the head restraint up (2).

To reinstall the head restraint:

  1. Put the head restraint poles into the holes (3) while pressing the release button (1).

  2. Adjust the head restraint to the appropriate height.

Wing-out head restraints

2C_WingoutHeadrest

Grab both sides of the head restraint and pull the head restraint inward.

The head restraint can be adjusted to support your head on the head restraint.

When the head restraint is not in use, return the head restraint to its original position.

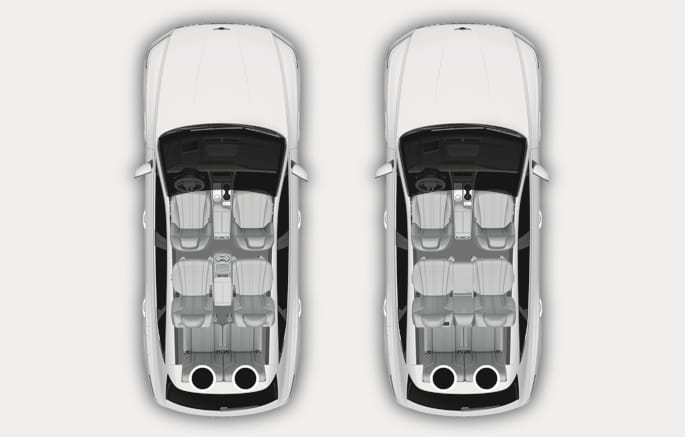

Third row seat head restraints (7-seater)

2C_RearHeadrestPosition_1

The third row seats are equipped with head restraints in all the seating positions for the passenger's safety and comfort.

Removal/Reinstallation

To remove the head restraint:

Pull the head restraint up.

To reinstall the head restraint:

  1. Put the head restraint poles into the holes.

  2. Push the head restraint down to the desired position.

Always make sure the head restraint is locked in place and properly adjusted for the passenger.

Third row seat head restraint folding (infotainment system)

The third row seat can be folded automatically from the infotainment system.

2C_3rdRowHeadRestFold

  • Before folding the third row head restraint automatically, lower the head restraint to the lowest position.

  • Never fold the third row head restraint manually.

  • To use the third row head restraint, unfold the head restraint manually.

The infotainment system may change after software updates. For more information, refer to the infotainment system manual.
