Surround View Monitor operation

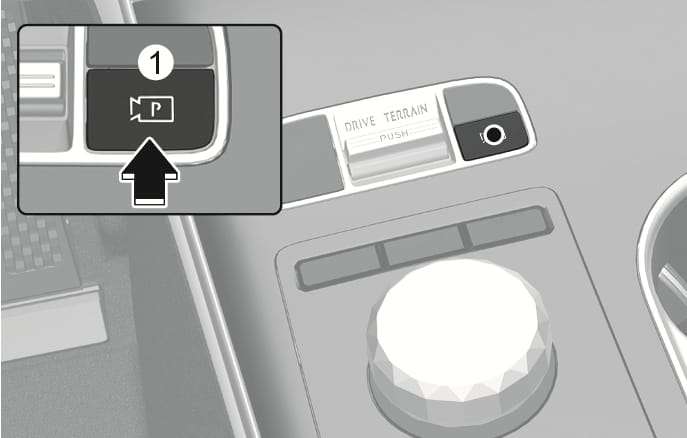

2025 Genesis GV70 Parking/View button image. The image shows the Parking/View button (1) labeled with a camera icon and the letter 'P' on the center console. A black arrow points upward to indicate the pressing action. Explains the function of pressing the button to turn the Surround View Monitor on or off.

2C_ParkingViewButton

Press the Parking/View button (1) to turn on Surround View Monitor.

Press the button again to turn off the function.

Front view

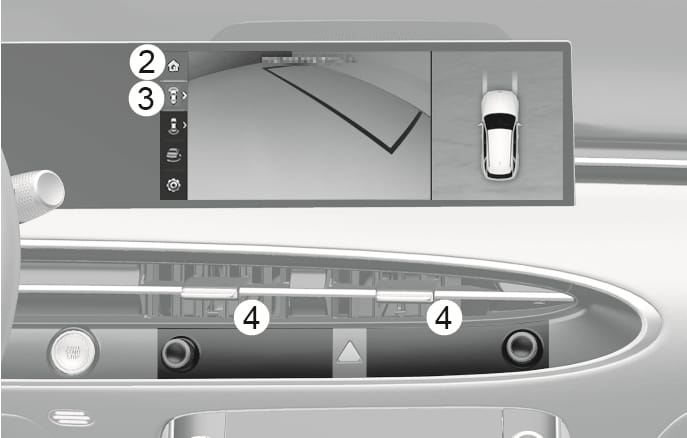

2025 Genesis GV70 Surround View Monitor Front View image. The screen displays the front and top-down views. The Home icon (2) and View icon (3) are on the sidebar. Infotainment buttons (4) are on the dashboard. Describes the front view interface.

2C_SVMFrontViewInfo

The front view appears on the screen when the gear is in N (Neutral) or D (Drive) to assist parking. The front view has top view, front view, front side view, and front wide view.

View modes can be selected by pressing the view buttons (2) on the Surround View Monitor screen.

Turns on if:

  • You shift the gear from R (Reverse) to N (Neutral) or D (Drive).

  • You press the Parking/View button (1) when the gear is in P (Park), N (Neutral), or D (Drive), and your vehicle speed is 10 km/h (6 mph) or less.

  • Surround View Monitor Auto On function is operating.

    (Surround View Monitor Auto On must be selected from the Settings menu.)

When the front view is turned on, the last view mode appears.

Turns off if:

  • You shift the gear to P (Park) or R (Reverse).

  • You press the Parking/View button (1).

  • You press the Home button (3).

  • You press the infotainment system buttons (4).

  • Your vehicle speed is above 10 km/h (6 mph).

Surround View Monitor turns off when vehicle speed is above 10 km/h. The function does not turn on again even if vehicle speed is below 10 km/h (6 mph).

Front view while driving

The front view maintains on the screen while driving.

View modes can be selected by pressing the view buttons (2) on the Surround View Monitor screen.

Turns on if:

  • You press the Parking/View button (1) when the gear is in N (Neutral), or D (Drive), and your vehicle speed is above 10 km/h (6 mph).

Turns off if:

  • You shift the gear to P (Park) or R (Reverse).

  • You press the Parking/View button (1).

  • You press the Home button (3).

  • You press the infotainment system buttons (4).

  • When the front view while driving is turned on, the last view mode appears.

  • The front view while driving does not turn off even when the vehicle speed is below 10 km/h (6 mph) once it is on.

  • When the front view while driving is on, the front top view and side view are disabled.

Rear view

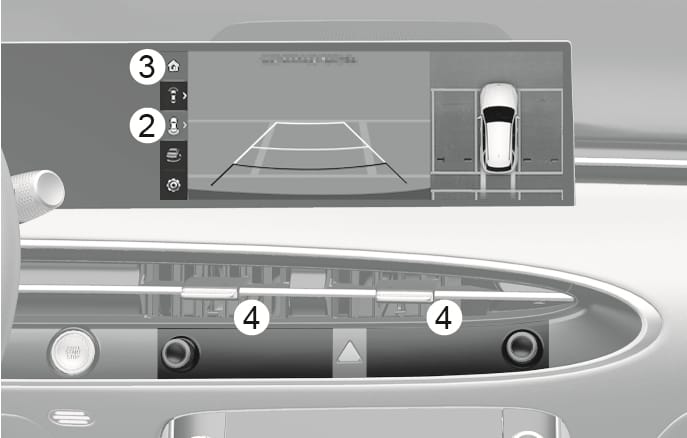

2025 Genesis GV70 Surround View Monitor rear view screen image. The infotainment screen displays the rear view with parking guidelines and a top-down view. Callout (2) indicates the view buttons, and (3) indicates the Home button on the screen. Callout (4) points to the physical infotainment system buttons below the screen. Explains the rear view interface and controls.

2C_SVMRearViewInfo

The rear view appears on the screen to assist parking. The rear view has top view, rear view, rear side view, and rear wide view.

View modes can be selected by pressing the view buttons (2) on the Surround View Monitor screen.

Turns on if:

  • You shift the gear to R (Reverse).

  • You press the Parking/View button (1) when the gear is in P (Park), N (Neutral), or D (Drive), and your vehicle speed is below 10 km/h (6 mph).

Turns off if:

  • You shift the gear from N (Neutral) or D (Drive) to P (Park).

  • You press the Parking/View button (1) when the gear is in P (Park), N (Neutral), or D (Drive).

  • You press the Home button (3) when the gear is in P (Park), N (Neutral), or D (Drive).

  • You press the infotainment system buttons (4) when the gear is in P (Park), N (Neutral), or D (Drive).

  • Your vehicle speed is above 10 km/h (6 mph) when the gear is in D (Drive).

  • You shift the gear from R (Reverse) to P (Park).

The rear view cannot be turned off when the gear is in R (Reverse) even if the infotainment system buttons (4) are pressed.

Rear View while driving

The rear view maintains on the screen while driving, it is to assist with backing up.

Turns on if:

  • You press the rear view mode from view buttons (2) after pressing the Parking/View button (1) when the gear is in N (Neutral) or D (Drive), and your vehicle speed is above 10 km/h (6 mph).

Turns off if:

  • You shift the gear to P (Park).

  • You press the Parking/View button (1).

  • You press the Home button (3).

  • You press the infotainment system buttons (4).

  • When the rear view while driving is turned on, the last view mode appears.

  • The rear parking guidelines do not appear when the rear view is displayed while driving.

  • The rear view while driving does not turn off even when the vehicle speed is below 10 km/h (6 mph).

  • When the rear view while driving is on, the rear top view and rear side view are disabled.

3D view

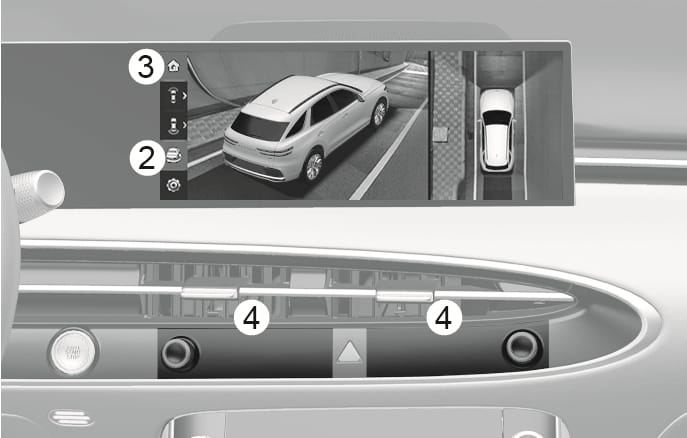

2025 Genesis GV70 Surround View Monitor image. The infotainment screen displays a 3D vehicle view and a top-down view. It highlights the view buttons (2) and Home button (3) on the screen's side bar, and the physical infotainment system buttons (4) on the dashboard. Explains the interface and controls for the surround view system.

2C_SVM3DViewInfo

The 3D view shows the image around the vehicle from various angles.

Tap the screen to change vehicle angles. Press the 3D view button (2) again to return to the initial angle.

Turns on if:

  • You press the 3D view button (2) when the gear is in P (Park), N (Neutral), or D (Drive), and your vehicle speed is below 10 km/h (6 mph).

  • You press the 3D view button (2) when Surround View Monitor is turned on when the gear is in R (Reverse).

Turns off if:

  • You shift the gear from N (Neutral) or D (Drive) to P (Park).

  • You press the Parking/View button (1) when the gear is in P (Park), N (Neutral), or D (Drive).

  • You press the Home button (3) when the gear is in P (Park), N (Neutral), or D (Drive).

  • You press the infotainment system buttons (4) when the gear is in P (Park), N (Neutral), or D (Drive).

  • Your vehicle speed is above 10 km/h (6 mph) when the gear is in D (Drive).

  • You shift the gear from R (Reverse) to P (Park).

3D view does not display guidelines.
