Battery capacity label

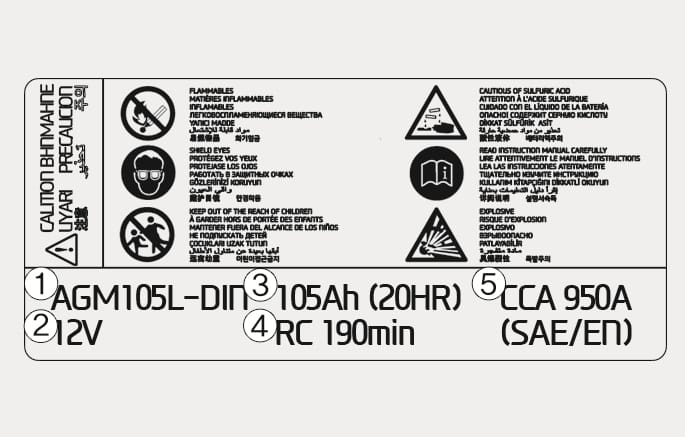

Type A
2025 Genesis GV70 battery capacity label image. The label displays safety symbols and specifications with callout numbers: (1) 'AGM105L-DIN', (2) '12V', (3) '105Ah (20HR)', (4) 'RC 190min', and (5) 'CCA 950A'. This explains the battery model, voltage, capacity, and cold-test current information.

2C_BatteryCapacityLabel

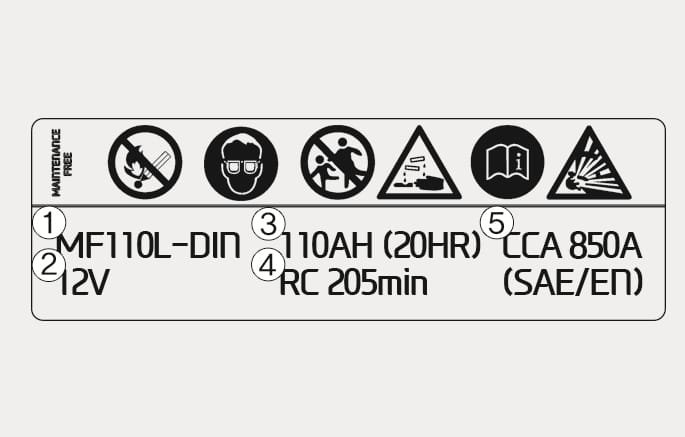

Type B
2025 Genesis GV70 battery capacity label image. The label shows safety symbols and specifications: (1) MF110L-DIN, (2) 12V, (3) 110AH, (4) RC 205min, and (5) CCA 850A. Describes the battery model, voltage, capacity, reserve capacity, and cold-test current.

2C_BatteryCapacityLabel_1

The actual battery label in the vehicle may differ from the illustration.

  1. The Genesis Branded Vehicle model name of battery
  2. The nominal voltage
  3. The nominal capacity (in Ampere hours)
  4. The nominal reserve capacity (in min.)
  5. The cold-test current in amperes by SAE / EN
