Driver Assistance System sensors

The Driver Assistance Systems on your vehicle uses cameras and sensors to detect potential hazards in the vicinity of your vehicle.

Detecting sensors

Cameras

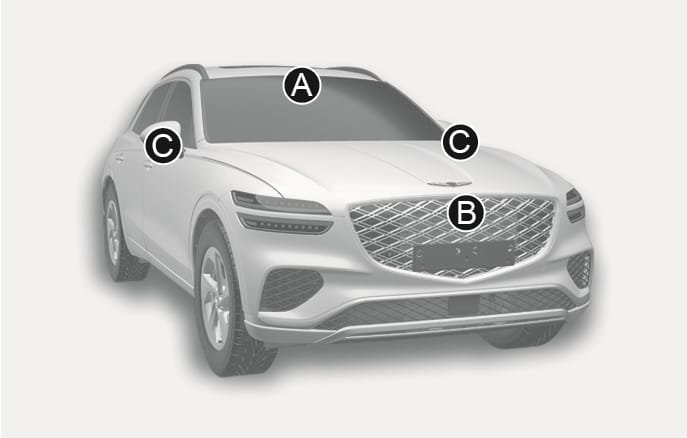

2025 Genesis GV70 Front Camera Position image. Labels on the vehicle's front exterior indicate camera locations: (A) front view camera on the windshield, (B) wide-front view camera on the grille, and (C) wide-side view cameras on the mirrors. This describes the locations of the detecting sensors for the Driver Assistance System.

2C_FrontCameraPosition

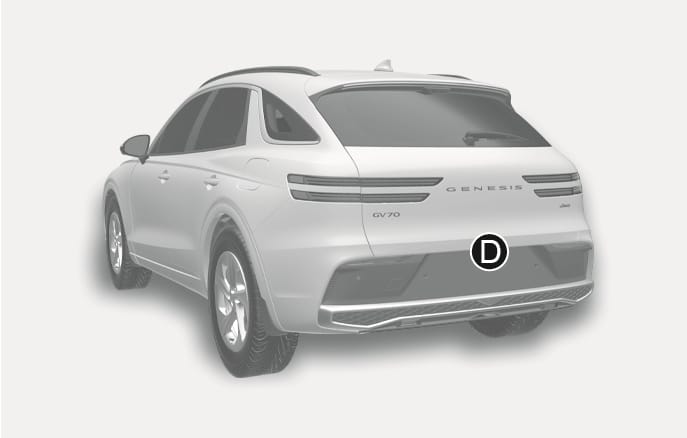

2025 Genesis GV70 wide-rear view camera location image. The rear exterior of the vehicle is displayed, with a callout (D) indicating the camera lens positioned above the rear license plate area. This explains the location of the wide-rear view camera sensor.

2C_RearCameraPosition

The actual shape may differ from the illustration.

  1. Front view camera (if equipped)
  2. Wide-front view camera (if equipped)
  3. Wide-side view camera (if equipped)
  4. Wide-rear view camera

To prevent serious injury or death:

  • Never disassemble the camera sensors or camera sensor assemblies.

  • We recommend that the detecting sensor be replaced or repaired by an authorized retailer of Genesis Branded products.

  • Never install any accessories, stickers, or tint the front windshield.

  • Always keep the camera dry.

  • Never place any reflective objects (e.g. white paper, mirror) on the dashboard.

  • Do not use any cleanser containing acid or alkaline detergents when cleaning the camera lenses. Use only a mild soap or neutral detergent, and rinse thoroughly with water.

Radars

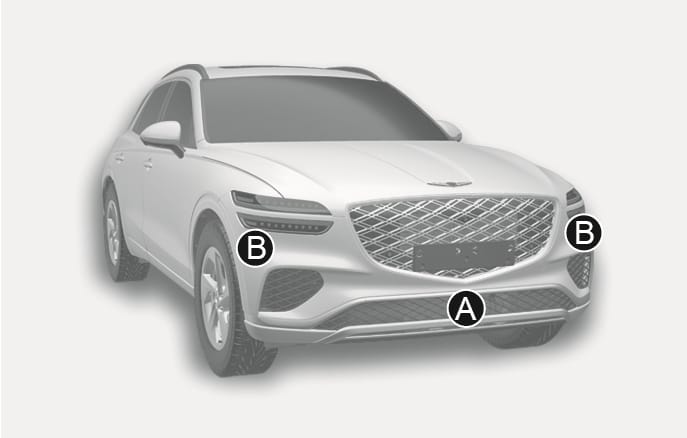

2025 Genesis GV70 front radar sensors location image. The image shows the vehicle's front view with callout (A) indicating the front radar in the lower central grille and callout (B) indicating the front corner radars on the bumper sides. Explains the positions of the radar sensors for the Driver Assistance System.

2C_FrontRadarPosition

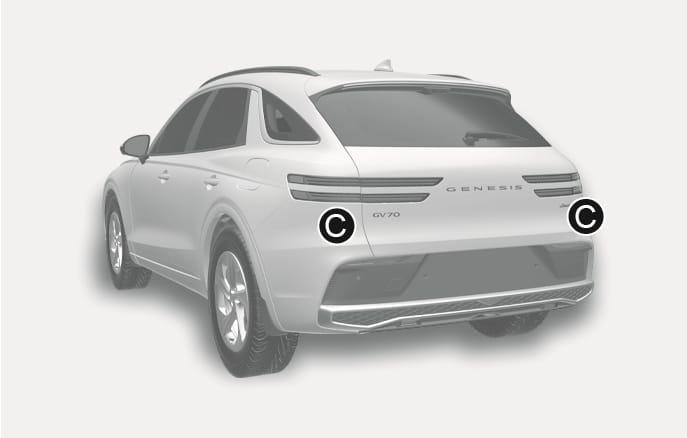

2025 Genesis GV70 rear corner radar location image. The image displays the rear view of the vehicle with black circular callouts labeled (C) positioned on the left and right corners of the rear bumper. This explains the location of the rear corner radars (C) used for the Driver Assistance System.

2C_RearRadarPosition

The actual shape may differ from the illustration.

  1. Front radar (if equipped)
  2. Front corner radar (if equipped)
  3. Rear corner radar (if equipped)

To prevent serious injury or death:

  • Never disassemble the radar or radar assembly, and never apply any impact on it.

  • If there is impact on or near the radar, the sensors may be damaged or not be properly aligned near the radar, even though a warning message does not appear on the instrument cluster, Driver Assist system may not operate properly. We recommend that your vehicle be inspected by an authorized retailer of Genesis Branded products.

  • If the radar have been replaced or repaired, we recommend that your vehicle be inspected by an authorized retailer of Genesis Branded products.

  • We recommend that genuine Genesis parts are used to repair the bumper where the radar is located. Their performance have been proven.

  • Do not install a license plate frame or other objects such as bumper sticker, film, bumper guard, or bumper wrap near the radar.

  • Driver Assistance system may not work properly if the bumper has been replaced, or the surroundings of the radar has been damaged or painted.

  • If a trailer or hitch mounted carrier is attached, it may adversely affect the performance of the rear corner radar or the function may not operate.

Ultrasonic sensors

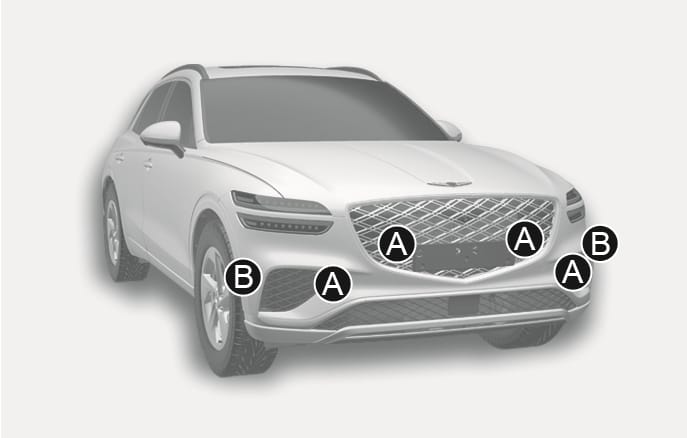

2025 Genesis GV70 front ultrasonic sensor location image. The image displays the front view of the vehicle. The front ultrasonic sensors are indicated by (A) on the radiator grille and lower bumper area. The front side ultrasonic sensors are indicated by (B) on the corners of the front bumper. This explains the specific locations of the sensors used to detect potential hazards.

2C_FrontUltrasonicSensorLocation

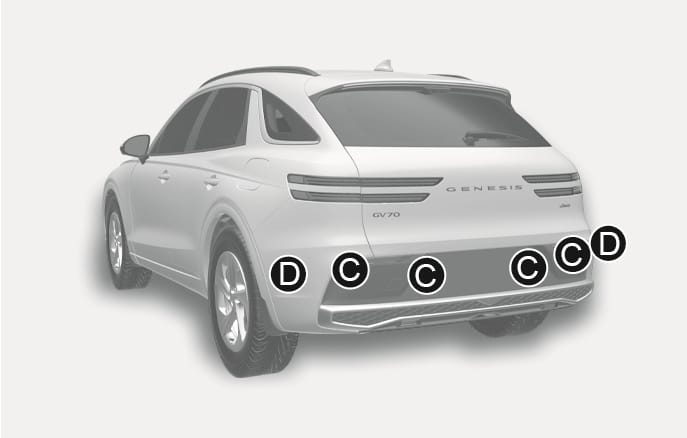

2025 Genesis GV70 Rear Ultrasonic Sensor Location image. The image displays the rear of the vehicle with callouts C and D. The rear ultrasonic sensors (C) are located on the rear bumper, and the rear side ultrasonic sensors (D) are positioned on the bumper corners. This describes the locations of the sensors used to detect obstacles in the vicinity of the vehicle.

2C_RearUltrasonicSensorLocation

The actual shape may differ from the illustration.

  1. Front ultrasonic sensors
  2. Front side ultrasonic sensors (if equipped)
  3. Rear ultrasonic sensors
  4. Rear side ultrasonic sensors (if equipped)

To prevent serious injury or death:

  • Always keep the ultrasonic sensors clean.

  • Do not spray the ultrasonic sensors or the surrounding area directly with high pressure water.

  • Do not apply objects such as bumper sticker or bumper guard, near the ultrasonic sensors or never apply paint to the bumper or other locations.

  • Never disassemble or strike the ultrasonic sensors components.

  • Do not modify the vehicle bumper height or ultrasonic sensor installations. Any non-factory installed equipment or accessories may also interfere with the sensor performance.

  • If the ultrasonic sensors have been forcibly moved out of proper alignment or are damaged, we recommend that the vehicle be inspected by an authorized retailer of Genesis Branded products.
