Filter replacement

2.5 T-GDI

The air cleaner filter can be cleaned for inspection using compressed air. Do not attempt to wash or rinse it, because water can damage the filter. If soiled, replace the air cleaner filter.

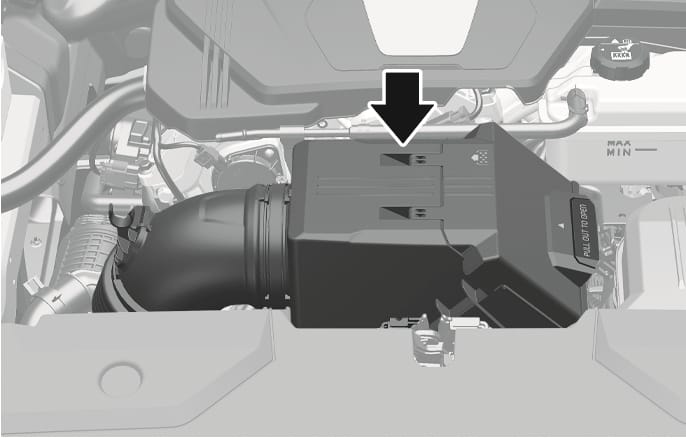

2025 Genesis GV70 air cleaner filter housing image. A black arrow points downward to the top of the air cleaner cover located in the engine compartment. The cover features a handle on the right side with the text 'PULL OUT TO OPEN'. This explains the location of the air cleaner filter for replacement.

2C_AirCleaner

  1. Pull up the air cleaner cover.

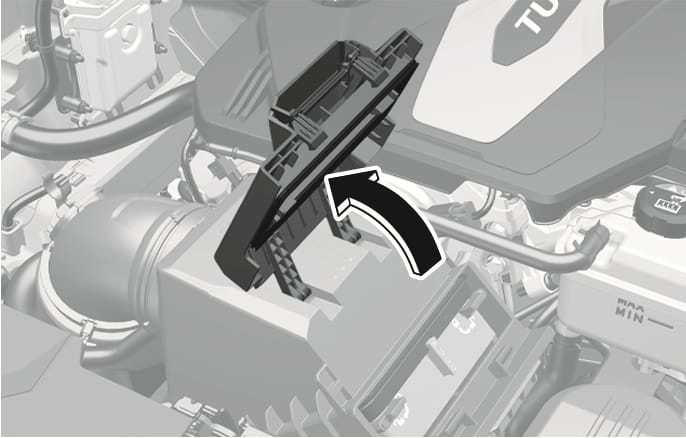

    2025 Genesis GV70 air cleaner cover image. A thick black curved arrow points upward, indicating the direction to lift the black plastic air cleaner cover in the engine compartment. Explains the function of pulling up the cover to replace the air cleaner filter.

    2C_AirCleanerReplacementProcedure_1

  2. Pull down the lever to the UNLOCK position.

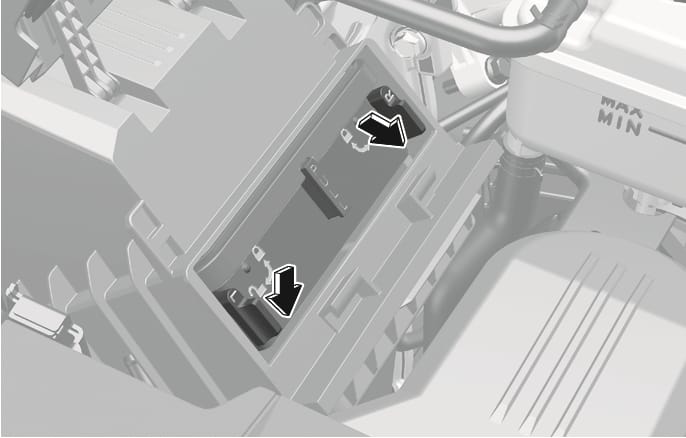

    2025 Genesis GV70 air cleaner filter replacement image. Two black levers labeled L and R are shown on the housing. Large black arrows with white outlines point downwards, indicating the direction to pull the levers from the lock icon to the unlock icon. Explains the function of pulling down the levers to the unlock position to remove the air cleaner cover.

    2C_AirCleanerReplacementProcedure_2

  3. Replace the air cleaner filter.

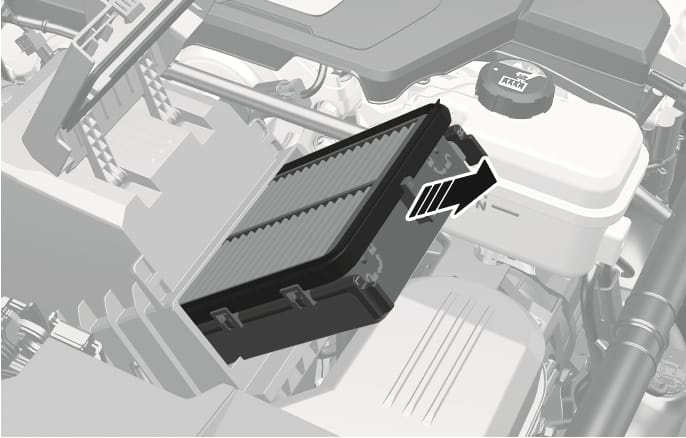

    2025 Genesis GV70 air cleaner filter replacement image. The air cleaner cover is open, and the rectangular filter is being pulled out from the housing. A large black arrow with white stripes points to the right, indicating the direction of removal. Explains the process of removing the air cleaner filter.

    2C_AirCleanerReplacementProcedure_3

  4. Reassemble the air cleaner filter cover in the reverse order.

    • Check that the cover is firmly installed.

3.5 T-GDI

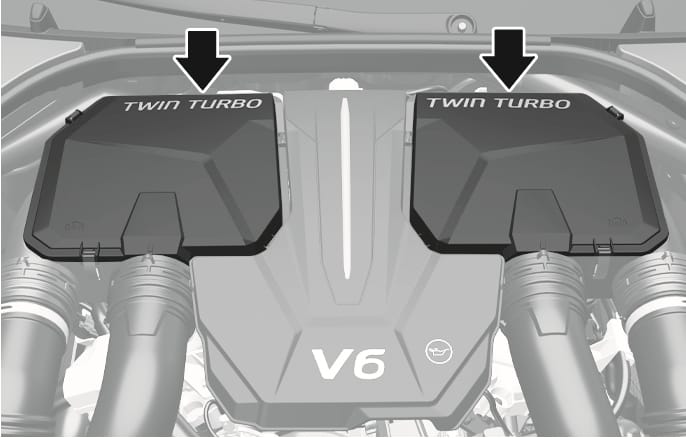

2025 Genesis GV70 3.5 T-GDI engine air cleaner location image. Two large black arrows point downwards to the left and right air cleaner covers labeled 'TWIN TURBO', positioned on either side of the central engine cover marked 'V6'. Explains the location of the air cleaner filters within the engine compartment.

2C_AirCleaner_1

Do not attempt to wash or rinse it, because water can damage the filter. If soiled, the air cleaner filter must be replaced. We recommend that you visit an authorized retailer of Genesis Branded products to replace air cleaner filter. Replace the air cleaner filter according to the Maintenance Schedule.

If the vehicle is operated in extremely dusty or sandy areas, replace the air cleaner filter more often than the usual recommended intervals (Refer to the "Maintenance under severe usage conditions (except Europe, but including Russia)" or "Maintenance under severe usage conditions (for Europe)" section in this chapter).

  • Do not drive with the air cleaner filter removed. This may result in excessive engine wear.

  • When removing the air cleaner filter, be careful that dust or dirt does not enter the air intake. It may cause damage.

  • We recommend that you use Genesis genuine parts or the equivalent specified for your vehicle. Use of non-genuine parts may damage the air flow sensor.
