Tilt / Telescopic steering

Adjust the steering wheel toward your chest, not toward your face. Make sure you can see the instrument cluster warning lights and gauges. After adjusting, push the steering wheel up and down to be in the locked position.

Never adjust the steering wheel whilst driving. This may cause loss of vehicle control resulting in a collision.

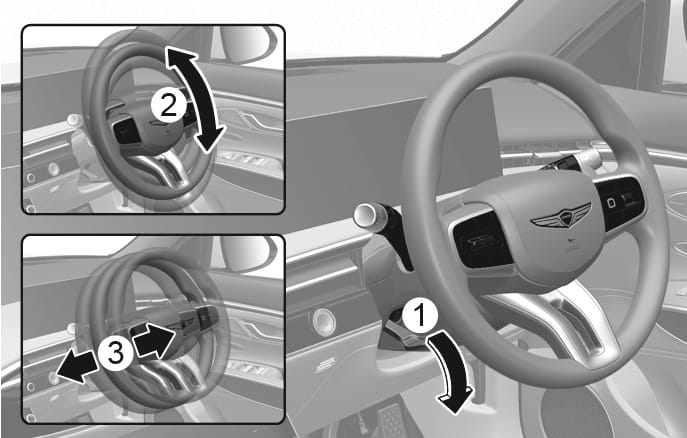

Manual adjustment

2C_AdjustSteeringWheelManual

To adjust:

  1. Pull down the lock-release lever (1).

  2. Adjust the steering wheel to the desired angle (2) and distance forward/back (3).

  3. Pull the lock-release lever up to lock the steering wheel in place.

Sometimes the lock-release lever may not engage completely. Pull down on the lock-release lever, readjust the steering wheel again, and then pull back up on the lock-release lever to lock the steering wheel in place.

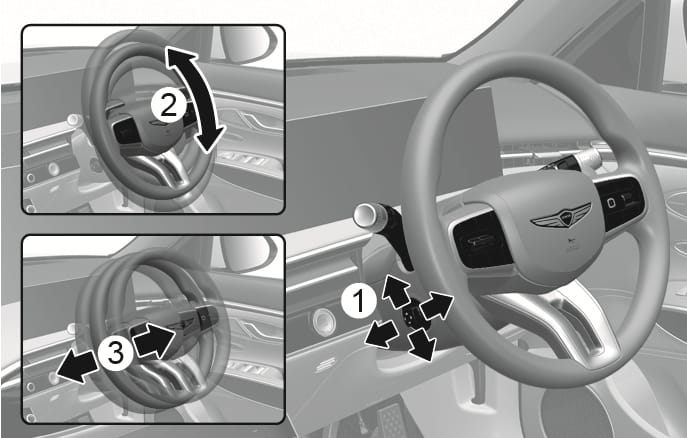

Power adjustment

2C_AdjustSteeringWheelElectric

To adjust:

  • Push the switch (1) up and down to adjust the angle (2).

  • Push the switch forward or rearward to adjust the height (3).

Do not adjust the steering wheel longer than necessary when the engine is turned off. This may result in unnecessary battery drain.

Resetting the steering wheel power adjustment

If adjustment is no longer possible within the operable range whilst adjusting the steering wheel position (angle or height), reset as follows:

  1. From the position the steering wheel has stopped, push the control switch (1) for 10 seconds in the direction you were adjusting the steering wheel. The steering wheel moves in the direction the control switch is pushed.

  2. Continue pushing the switch (1) for at least 2 seconds after the steering wheel has stopped. Resetting is completed after the operational range is recognised.

    If the adjustment is still not possible after resetting the steering wheel power adjustment, we recommend that the system be inspected by authorised Genesis repairer.
