Outside rear-view mirrors

2C_SideViewMirror

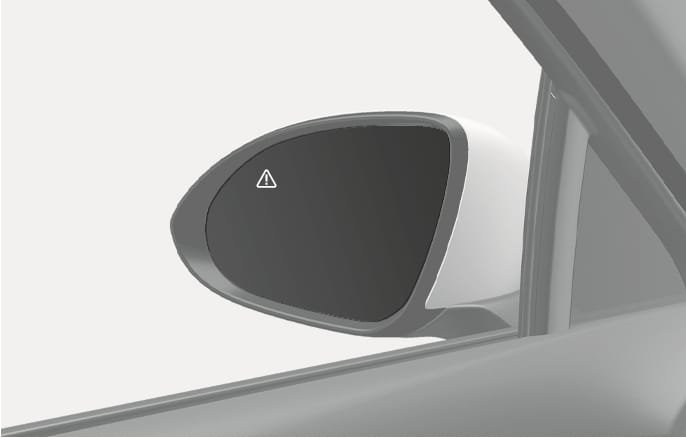

Your vehicle is equipped with both left-hand and right-hand outside rearview mirrors. The mirrors can be adjusted remotely with the mirror adjustment control switch. Adjust the outside rearview mirrors to your desired position before driving.

The left and right outside rearview mirrors are convex. Objects seen in the mirror are closer than they appear.

Use the inside rear view mirror or turn your head and look directly to determine the actual distance of other vehicles prior to changing lanes.

Do not adjust or fold the outside rearview mirrors whilst driving. This may cause loss of vehicle control resulting in a collision.

  • Do not scrape ice off the mirror face. This may damage the surface of the glass.

  • If the mirrors are jammed with ice, do not adjust them by force. Use an approved de-icer (not radiator antifreeze) spray, or a sponge or soft cloth with very warm water, or move the vehicle to a warm place and allow the ice to melt.

  • Do not clean the mirrors with harsh abrasives, fuel, or other petroleum based cleaning products.

Adjusting the rear-view mirrors

2C_AdjustSideViewMirror

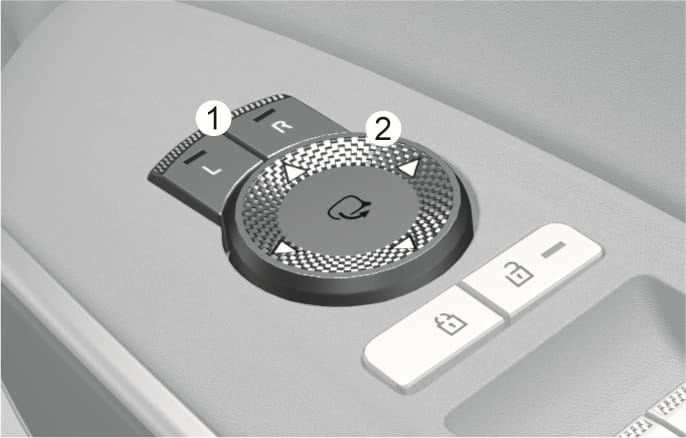

  1. Press the L (Left side) or R (Right side) button (1) to select the rear-view mirror you want to adjust.

  2. Use the mirror adjustment control (2) to position the selected mirror up, down, left, or right.

  3. After adjustment, press both L and R button off (indicator light off) to prevent unintended adjustment.

  • The mirrors stop moving when they reach the maximum adjusting angles, but the motor continues to operate whilst the switch is pressed. Do not press the switch longer than necessary, because this can damage the motor.

  • Do not adjust the outside mirror by hand to prevent damage to the motor.

Folding the rear-view mirrors

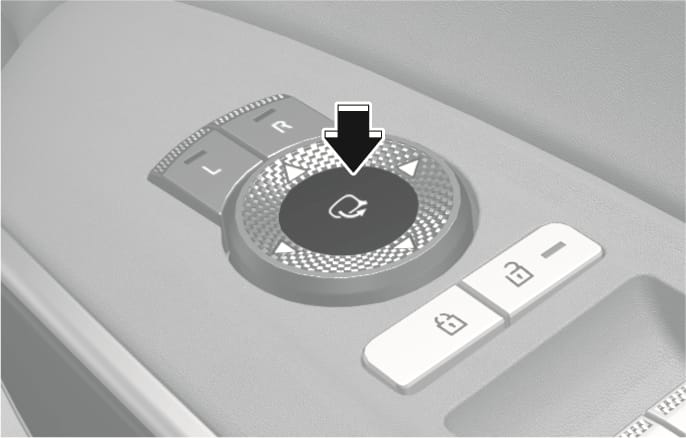

Folding button

Press the button to fold or unfold the outside rearview mirrors.

2C_FoldSideViewMirror

Infotainment system setting

  • Enable on door unlock

    If Setup > Vehicle > Welcome mirror/light > Enable on door unlock is selected from the Settings menu in the infotainment system,

    • The mirrors fold or unfold when the door is locked or unlocked by the smart key.

    • The mirrors fold or unfold when the door is locked or unlocked by the touch sensor on the outside door handle.

  • Enable on driver approach

    If Setup > Vehicle > Welcome mirror/light > Enable on driver approach is selected from the Settings menu in the infotainment system, the mirrors fold or unfold when the vehicle is approached with the smart key in possession.

The infotainment system may change after software updates. For more information, refer to the manual provided in the infotainment system and the quick reference guide.

The electric type outside rearview mirrors operate even though the Engine Start/Stop button is in the OFF position. However, to prevent unnecessary battery discharge, do not adjust the mirrors longer than necessary whilst the engine is not running.

Do not fold the electric type outside rearview mirrors by hand. It could cause motor failure.
