Seat warmers

Seat warmers are provided to warm the seats during cold weather.

During mild weather or under conditions where the operation of the seat warmer is not needed, keep the seat warmers off.

The seat warmers may cause serious burns, even at low temperatures and especially if used for long periods of time.

Passengers must be able to feel if the seat is becoming too warm so they can turn it off, if needed.

People who cannot detect temperature change or pain to the skin should use extreme caution, especially the following types of passengers:

  • Infants, children, elderly or disabled persons, or hospital outpatients.

  • People with sensitive skin or who burn easily.

  • Fatigued individuals.

  • Intoxicated individuals.

  • People taking medication that may cause drowsiness or sleepiness.

Never place anything on the seat that insulates against heat when the seat warmer is operating, such as a blanket or seat cushion.

To prevent damage to the seat warmers and seats:

  • Never use a solvent such as paint thinner, benzene, alcohol, or petrol to clean the seats.

  • Do not place heavy or sharp objects on seats equipped with seat warmers.

  • Do not change the seat cover.

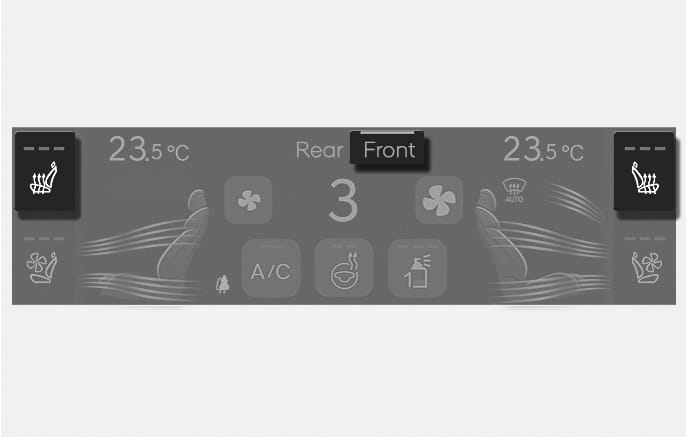

Front seat warmers

2C_FrontSeatWarmerSwitch

  1. Whilst the engine is running, press Front on the upper part of the climate control information screen.

    • The climate control information screen for the front seats are displayed.

  2. Press the button to warm the driver's seat or front passenger's seat.

    • The seat warmer temperature changes from high, medium, low, and to off each time the button is pressed.

  • The seat warmer automatically turns off if the seat temperature goes above a certain level. The seat warmer turns on again if the temperature is low.

  • The armrest warmer automatically turns on when the function is enabled from the infotainment system and the seat warmer turns on. (if equipped)

  • Automatic Controls Linked to Climate Control Settings (for driver's seat)

    The seat warmer automatically controls the seat temperature depending on the ambient temperature when the engine is running.

    To use this function, enable it from the Settings menu in the infotainment system. Select:

    • Setup > Vehicle > Seat > Warmer/Ventilated Features (or Heating/Ventilation) > Automatic Controls Linked to Climate Control Settings > Driver Seat Warmer/Ventilation (or Seat heating/ventilation)

  • Seat Heater Balance

    The seat warmer temperature can be adjusted or turned off for the seatback or seat cushion, when the seat warmer is on.

    To use this function, enable it from the Settings menu in the infotainment system. Select:

    • Setup > Vehicle > Seat > Warmer/Ventilated Features (or Heating/Ventilation) > Seat Warmer Balance (or Seat heater balance)

  • The seat warmer defaults to the OFF position whenever the Engine Start/ Stop button is pressed to the ON position. However, if the Automatic Controls Linked to Climate Control Settings function is on, the driver's seat warmer turns on and off depending on the ambient temperature.

Rear seat warmers

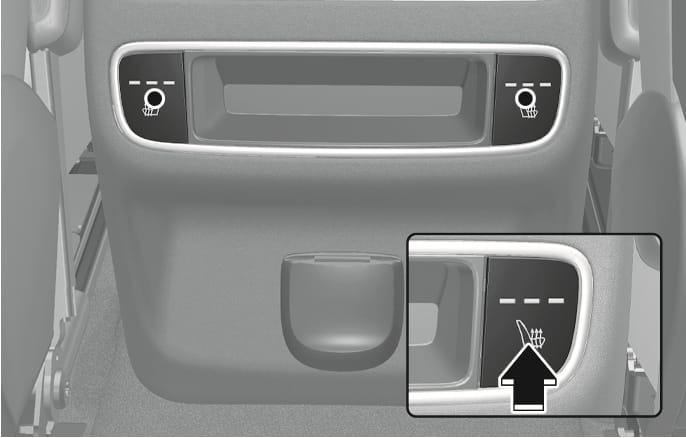

Type A

2C_RearSeatWarmerSwitch_1

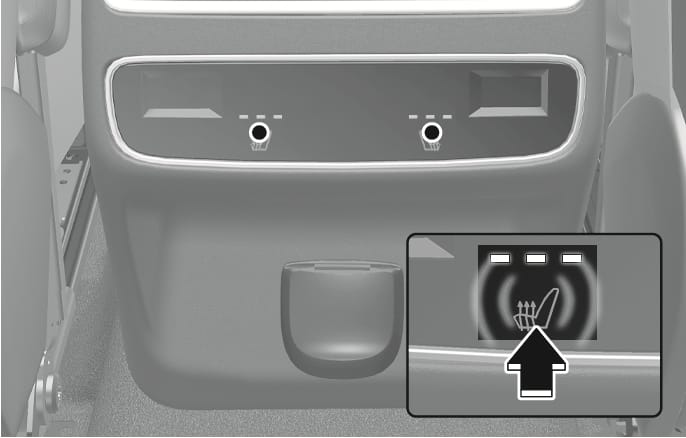

Type B

2C_RearSeatWarmerSwitch

Whilst the engine is running, press the button to warm the rear seats.

  • The seat warmer temperature changes from high, medium, low, and to off each time the button is pressed.

  • The seat warmer temperature is lowered automatically after a certain time to prevent low temperature burns.

  • The seat warmer defaults to the OFF position whenever the Engine Start/Stop button is in the ON position.

Operating the rear seat warmer from the front seat

2C_FromTheFrontSeatsRearSeatWarmerSwitch

Rear seat warmers can be turned on or off from the front seats.

  1. Press Rear on the upper part of the climate control information screen whilst the engine is running.

    • The climate control information screen for the rear seats are displayed.

  2. Press the button next to the seat which requires warming from the climate control information screen.

    • The temperature changes from high, medium, low, and to off each time the button is pressed.
