Forward/Reverse Parking Distance Warning operation

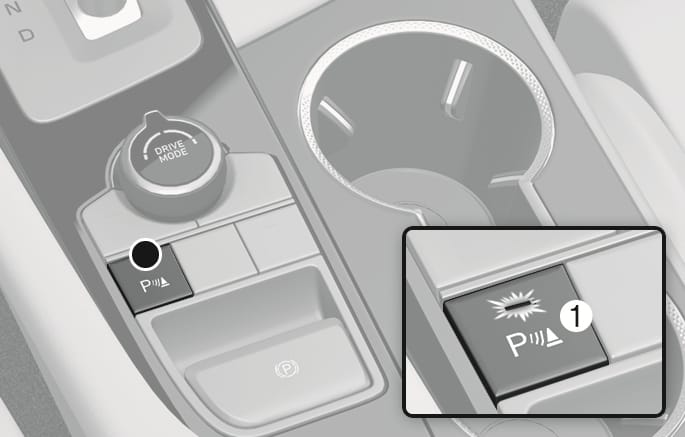

Parking Safety button

OIK073078

Press the Parking Safety () button to turn on Forward/Reverse Parking Distance Warning. Press the button again to turn off the function.

  • When the gear is shift to R (Reverse), Parking Distance Warning will automatically turn on (Parking Safety button indicator on).

Parking Distance Warning Auto On

To use Parking Distance Warning Auto On function, select Setup > Vehicle> Driver Assistance > Parking Safety > Parking Distance Warning Auto On from the Settings menu in the infotainment system.

Forward Parking Distance Warning

Forward Parking Distance Warning will operate when one of the condition is satisfied.

  • The gear is shifted from R (Reverse) to D (Drive) with Reverse Parking Distance Warning on

  • The gear is in D (Drive) and the Parking Safety button indicator light is on

  • Shift to D (Drive) when the function is off (Only when Setup > Vehicle > Driver Assistance > Parking safety > Parking Distance Warning Auto On is selected from the Settings menu in the infotainment system.)

  • Forward Parking Distance Warning will operate only when the vehicle's forward speed is below 6 mph (10 km/h).

  • While the gear is in R (Reverse), Forward Parking Distance Warning warns only the front outer side area (within 24 in. (60 cm)).

  • Forward Parking Distance Warning is deactivated if the vehicle speed reaches above 18 mph (30 km/h). It will not reactivate although the vehicle speed drops below 6 mph (10 km/h).

    (Only when Setup > Vehicle > Driver Assistance > Parking Safety > Parking Distance Warning Auto On is not selected from the Settings menu in the infotainment system.)

    Distance from object

    Warning indicator

    Warning sound

    Cluster

    Infotainment

    24-40 in. (60-100 cm)

    Buzzer beeps intermittently

    (Only when detected in the front center area)

    12-24 in. (30-60 cm)

    Beeps more frequently

    within 12 in. (30 cm)

    Beeps continuously

  • The corresponding indicator will illuminate whenever each ultrasonic sensor detects a person, animal or object in its sensing range. Also an audible warning will sound.

  • When more than two objects are detected at the same time, the closest one will be warned with an audible warning.

  • The shape of the indicator in the illustration may differ from the actual vehicle.

Reverse Parking Distance Warning

Reverse Parking Distance Warning will operate under the following conditions.

  • The gear is shifted to R (Reverse).

  • When the vehicle's rearward speed is below 6 mph (10 km/h), both the front and rear ultrasonic sensors will help detect objects. However, the front ultrasonic sensors can help detect a person, animal or object when it is within 24 in. (60 cm) from the sensors.

Reverse Parking Distance Warning will operate when the vehicle's reverse speed is below 6 mph (10 km/h).

Distance from object

Warning indicator when driving rearward

Warning sound

Cluster

24-48 in. (60-120 cm)

Buzzer beeps intermittently

12-24 in. (30-60 cm)

Buzzer beeps frequently

within 12 in. (30 cm)

Beeps continuously

  • The corresponding indicator will illuminate whenever each ultrasonic sensor detects a person, animal or object in its sensing range. Also an audible warning will sound.

  • When more than two objects are detected at the same time, the closest one will be warned with an audible warning.

  • The shape of the indicator in the illustration may differ from the actual vehicle.
