Auto defogging system
OIK053046L
Auto defogging helps reduce the possibility of fogging up the inside of the windshield by automatically sensing the moisture on inside the windshield.
The auto defogging system operates when the heater or air conditioning is on.
The auto defogging system may not operate normally, when the outside temperature is below 14 °F (-10 °C).
When the Auto Defogging System operates, the indicator will illuminate.
If a high amount of humidity is detected in the vehicle, the Auto Defogging System will be enabled. The following steps will be performed automatically:
-
Operating the air conditioning.
-
Outside air position.
-
Blowing air flow toward the windshield.
-
Increasing air flow toward the windshield (Step could be changed according to the outside temperature).
If the air conditioning is off or recirculation mode is manually selected while Auto Defogging System is ON, the Auto Defogging System indicator will blink 3 times to signal that the manual operation has been canceled.
Climate control system
Press the front windshield defroster button for 3 seconds when the Engine Start/Stop button is in the ON position to turn the system on or off.
Infotainment system
Auto Defogging System can be turned on and off by selecting Setup > Vehicle > Climate > Defog/Defrost Options > Auto Defog from the Settings menu in the infotainment system.
-
When the air conditioning is turned on by Auto Defogging System, if you try to turn off the air conditioning, the air conditioning will not be turned off.
-
To maintain the effectiveness and efficiency of the Auto Defogging System, do not select Recirculation mode while the system is operating.
-
When Auto Defogging System is operating, fan speed adjustment, temperature adjustment, and air intake control selection are all disabled.

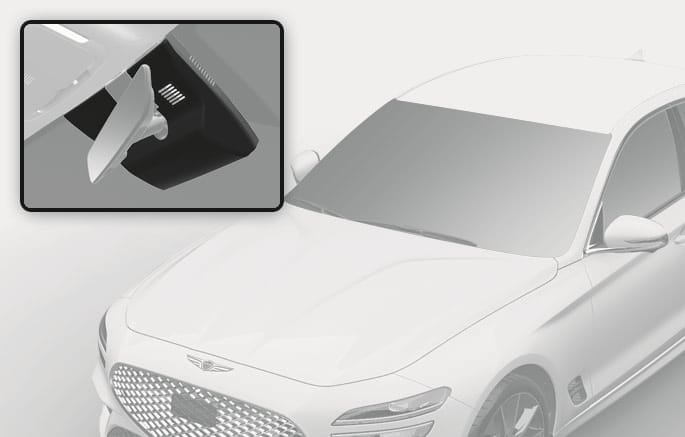

Do not remove the sensor cover located on the upper end of the windshield glass.
Damage to system parts could occur and may not be covered by your vehicle warranty.
