Rear View Monitor operation

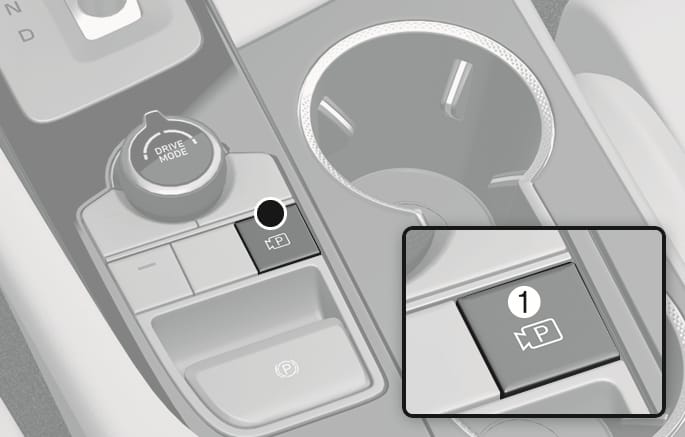

Parking/View button

OIK073272

Press the Parking/View button (1) to turn on Rear View Monitor.

Press the button again to turn off the function.

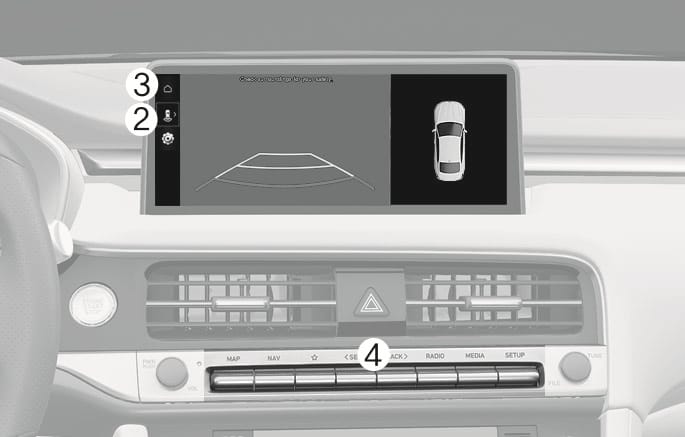

Rear view

OIK075238N

Operating conditions

  • Shift the gear to R (Reverse), the rear view will turn on.

  • Press the Parking/View button (1) while the gear is in P (Park), the rear view will turn on.

  • Select the change view button (2), and press the rear view button.

Off conditions

  • Press the Parking/View button (1), the home button (3), or the infotainment system button (4) while the gear is in P (Park) with the rear view on the screen, and the rear view will turn off.

  • Shift the gear from R (Reverse) to P (Park), the rear view will turn off.

When the gear is in R (Reverse), the rear view does not turn off.

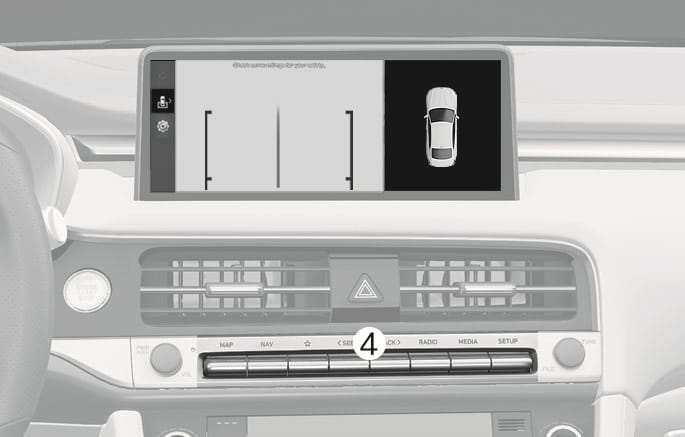

Rear top view

OIK075239N

When you touch the icon, the top view appears on the screen and shows the distance from the vehicle in the back of your vehicle while parking.

Extended Rear View Monitor

The rear view will maintain showing on the screen to help you when parking.

Operating conditions

The gear is shifted from R (Reverse) to N (Neutral) or D (Drive), and vehicle speed is 6 mph (10 km/h) or less.

Off conditions

  • When vehicle speed is above 6 mph (10 km/h), the rear view will turn off.

  • Press the Parking/View button (1), the rear view will turn off.

  • Shift the gear to P (Park), the rear view will turn off.

  • Press the infotainment system button (4), the rear view will turn off.

  • Press the home button (3), the rear view will turn off.
