Gauges and meters

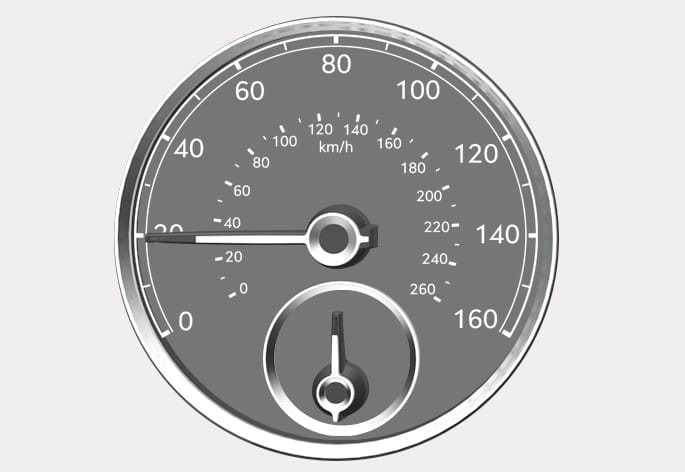

Speedometer

The speedometer indicates the speed of the vehicle and is calibrated in kilometers per hour (km/h) and/or miles per hour (MPH).

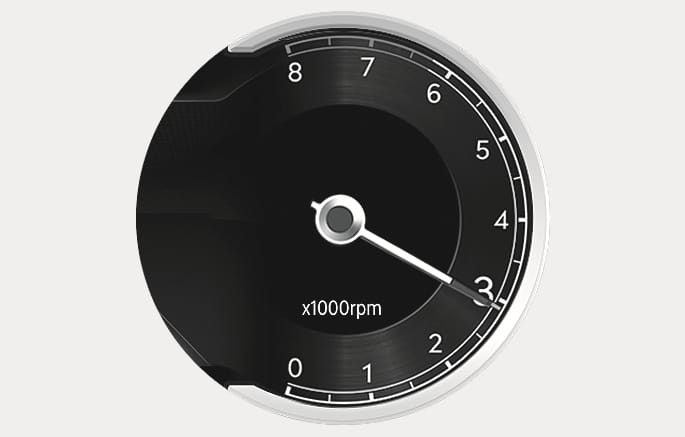

Tachometer

The tachometer indicates the approximate number of engine revolutions per minute (RPM).

Use the tachometer to select the correct shift points and to prevent lugging and/or over-revving the engine.

Do not operate the engine within the tachometer's RED ZONE. This may cause severe engine damage.

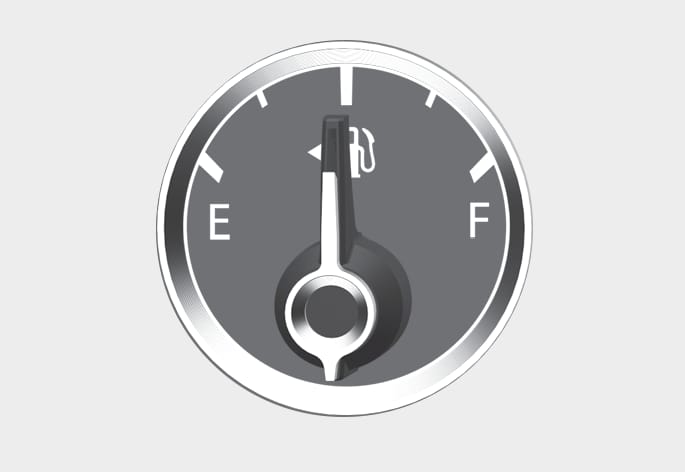

Fuel gauge

This gauge indicates the approximate amount of fuel remaining in the fuel tank.

F It shows the fuel inlet is located on the left side of the vehicle.

The fuel tank capacity is given in chapter 2.
The fuel gauge is supplemented by a low fuel warning light, which will illuminate when the fuel tank is nearly empty.
On inclines or curves, the fuel gauge pointer may fluctuate or the low fuel warning light may come on earlier than usual due to the movement of fuel in the tank.
The distance to empty and fuel amount increases when refueling more than 1.5 US gal. (6 liters).

If the shift gear is not P (Park) or N (Neutral) during refueling, the refueling may not be recognized and the fuel amount and distance to empty may be displayed abnormally.

Running out of fuel can expose vehicle occupants to danger.

You must stop and obtain additional fuel as soon as possible after the warning light comes on or when the gauge indicator comes close to the "E (Empty)" level.

Avoid driving with an extremely low fuel level. Running out of fuel could cause the engine to misfire damaging the catalytic converter.

Outside temperature gauge

This gauge indicates the current outside air temperatures by 1 °F (1 °C).

Note that the temperature indicated on the cluster display may not change as quickly as the outside temperature (there may be a slight delay before the temperature changes.)

You can change the temperature unit from the Settings menu in the infotainment system. Select:

Setup > General > Units > Temperature Unit > °C/°F

For vehicles equipped with Automatic Climate Control, you can also:

Press the AUTO button while pressing the OFF button on the climate control unit for 3 seconds

Both the temperature unit on the cluster display and climate control screen will change.

The infotainment system may change after software updates. For more information, refer to the infotainment system manual.

Odometer

The odometer indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.

Distance to empty

The distance to empty is the estimated distance the vehicle can be driven with the remaining fuel.
If the estimated distance is below 1 mi. (1 km), the trip computer will display "---" as distance to empty.

The distance to empty and fuel amount increases when refueling more than 1.5 US gal. (6 liters).
If the vehicle is not on level ground or the battery power has been interrupted, the fuel amount and range function may not operate correctly.
The distance to empty may differ from the actual driving distance as it is an estimate of the available driving distance.
The trip computer may not register additional fuel if less than 1.6 gallon (6 liters) of fuel are added to the vehicle.
The distance to empty may vary significantly based on driving conditions, driving habits, and condition of the vehicle.

If the shift gear is not P (Park) or N (Neutral) during refueling, the refueling may not be recognized and the fuel amount and distance to empty may be displayed abnormally.
