Fuse/relay panel description

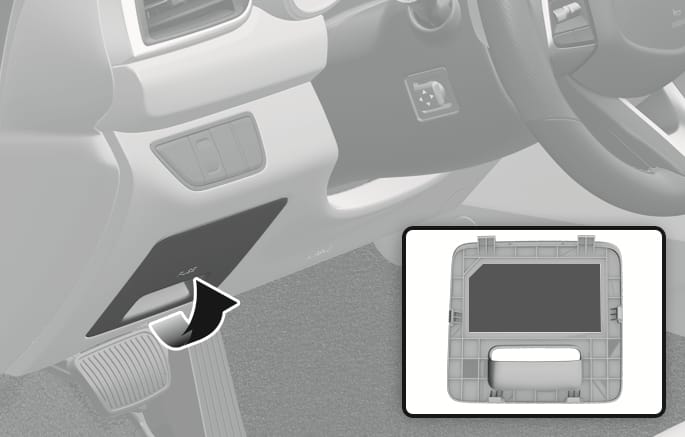

OIK093029
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

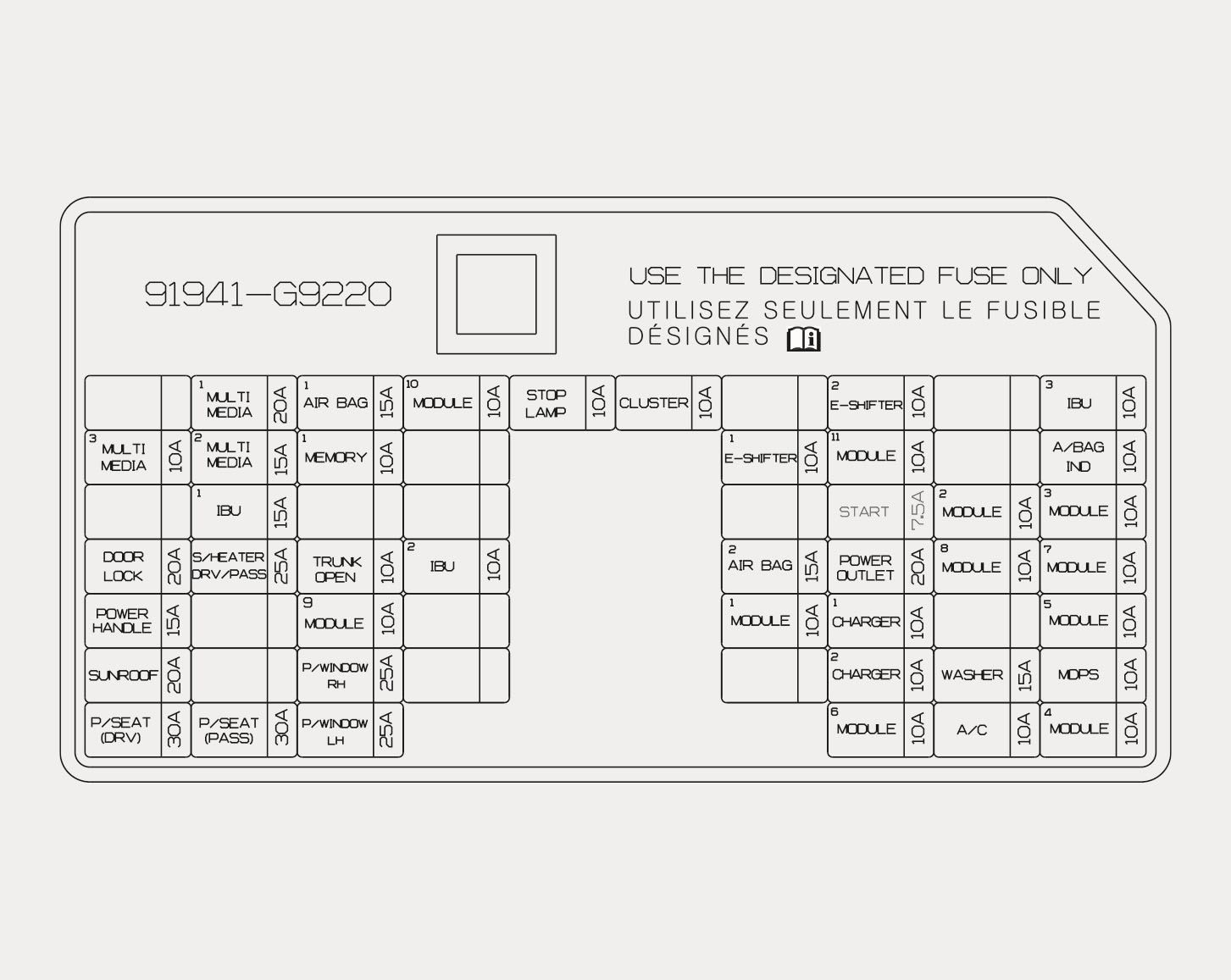

OIK093013N
Instrument panel fuse panel (Driver's side fuse panel)
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
MULTI MEDIA1 |
20A |
Fuse - MULTIMEDIA 2/3 |
|
AIR BAG1 |
15A |
SRS Control Module, Passenger Occupant Detection Sensor |
|
MODULE10 |
10A |
Power Trunk Module, Driver/Passenger Power Side View Mirror, Driver Door Module, Driver IMS Control Module, Driver Air Lumbar Control Unit |
|
STOP LAMP |
10A |
IBU, Stop Lamp Switch |
|
CLUSTER |
10A |
Instrument Cluster, Head-Up Display |
|
E-SHIFTER2 |
10A |
Electronic ATM Shift Lever |
|
IBU3 |
10A |
IBU |
|
MULTI MEDIA3 |
10A |
Surround View Monitor |
|
MULTI MEDIA2 |
15A |
A/V & Navigation Head Unit |
|
MEMORY1 |
10A |
A/C Control Module, A/C Switch, Security Indicator, Head-Up Display, Instrument Cluster |
|
E-SHIFTER1 |
10A |
Electronic ATM Shift Lever |
|
MODULE11 |
10A |
IAU, Multifunction Switch |
|
AIR BAG IND. |
10A |
Instrument Cluster, Overhead Console Lamp |
|
IBU1 |
15A |
IBU |
|
START |
7.5A |
IBU, PCB Block (P/N Block) |
|
MODULE2 |
10A |
IAU, IBU |
|
MODULE3 |
10A |
Driver Door Module, Stop Lamp Switch |
|
DOOR LOCK |
20A |
Door Lock Relay, Door Unlock Relay, Two Turn Unlock Relay |
|
S/HEATER DRV/PASS |
25A |
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
|
TRUNK OPEN |
10A |
Trunk Lid Relay, Fuel Lid Relay |
|
IBU2 |
10A |
Driver/Passenger Power Side View Mirror, Driver/Passenger Smart Key Outside Handle |
|
AIR BAG2 |
15A |
SRS Control Module |
|
POWER OUTLET |
20A |
Front Power Outlet |
|
MODULE8 |
10A |
A/C Switch |
|
MODULE7 |
10A |
AWD ECM, Smart Cruise Control Module, ECS Unit, Console Switch, IBU, Multifunction Camera Unit, Steering Tilt & Telescopic Module, Steering Angle Sensor, Surround View Monitor, Crash Pad Switch |
|
POWER HANDLE |
15A |
Steering Tilt & Telescopic Module |
|
MODULE9 |
10A |
Driver Air Lumbar Control Unit |
|
MODULE1 |
10A |
Data Link Connector, Console Switch, Hazard Switch, Crash Pad Switch, Multifunction Switch |
|
CHARGER1 |
10A |
Front USB Charger, Front Tray USB Charger |
|
MODULE5 |
10A |
Front Seat Warmer Control Module, Driver IMS Control Module, Front Air Ventilation Seat Control Module, A/C Control Module, A/C Switch, Electro Chromic Mirror, Rear Seat Warmer Control Module, AMP, Data Link Connector, Front Wireless Charger, A/V & Navigation Head Unit |
|
SUNROOF |
20A |
Sunroof Control Unit (Glass) |
|
P/WINDOW RH |
25A |
Passenger Safety Power Window Module, Rear Safety Power Window Module RH |
|
CHARGER2 |
10A |
Rear USB Charger |
|
WASHER |
15A |
Multifunction Switch |
|
MDPS |
10A |
MDPS Unit |
|
P/SEAT (DRV) |
30A |
Driver IMS Control Module, Driver Seat Manual Switch |
|
P/SEAT (PASS) |
30A |
Passenger Seat Manual Switch, Passenger Walk In Relay Module |
|
P/WINDOW LH |
25A |
Driver Safety Power Window Module, Rear Safety Power Window Module LH |
|
MODULE6 |
10A |
Surround View Monitor, IBU, AMP, IAU, Electronic ATM Shift Lever, A/V & Navigation Head Unit |
|
A/C |
10A |
A/C Control Module, A/C Switch |
|
MODULE4 |
10A |
Not Used |

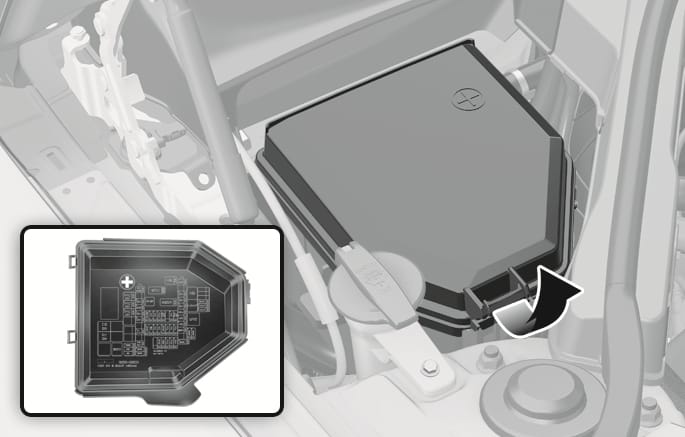

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

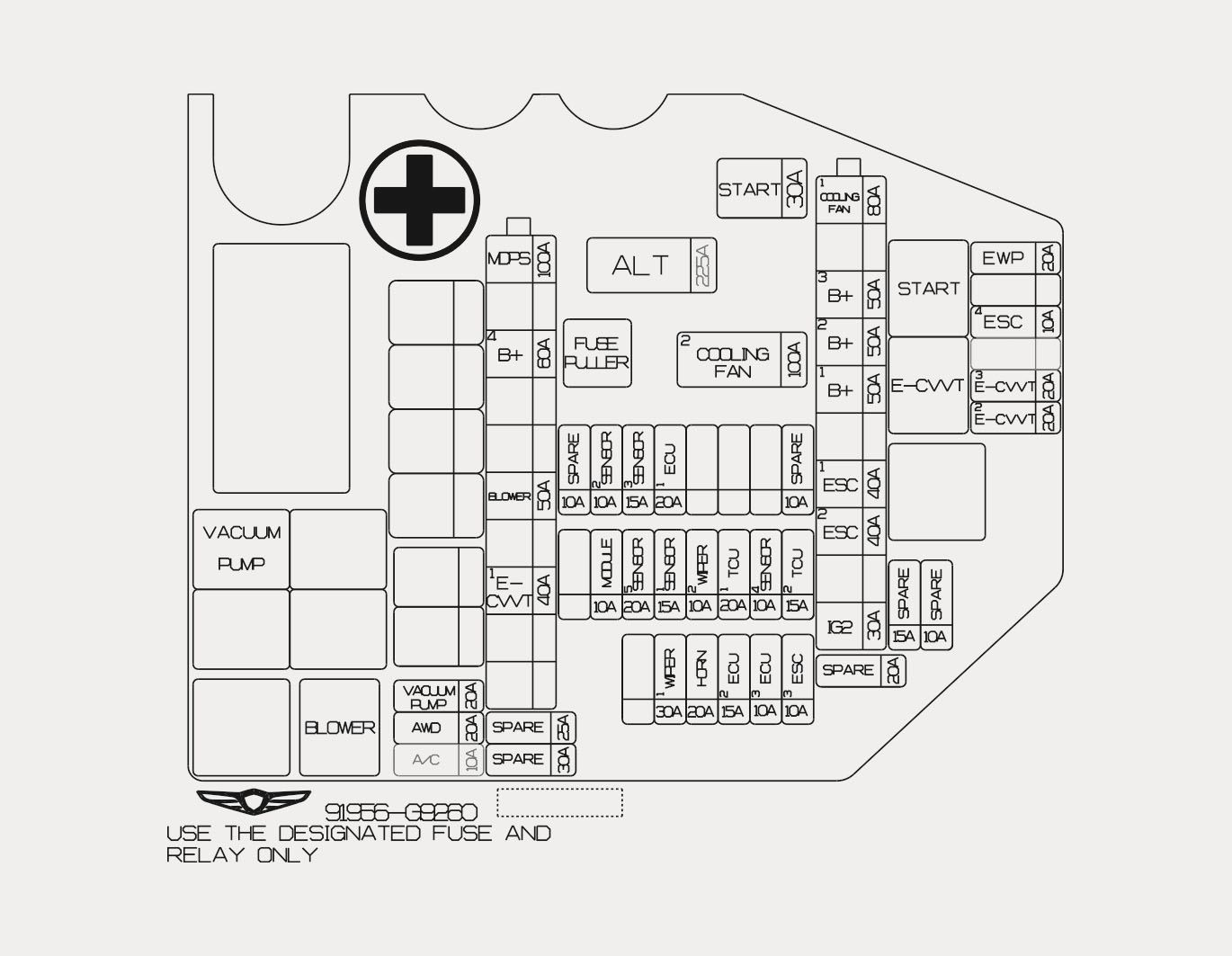

OIKSB093130N
Engine compartment fuse panel
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
ALT |
225A |
Alternator, Fuse - COOLING FAN2, Multi Fuse 1 - COOLING FAN1, B+1, B+2, B+3, IG2, ECS1, ECS2 |
|
COOLING FAN2 |
100A |
[G6DP] Cooling Fan Controller |
|
START |
30A |
Start Relay |
|
COOLING FAN1 |
80A |
[G4KR] Cooling Fan Controller |
|
B+3 |
50A |
ICU Junction Block (Long Term Load Latch Relay, Fuse - STOP LAMP, MEMORY1, MULTIMEDIA 1/2/3, MODULE10) |
|
B+2 |
50A |
ICU Junction Block (Fuse - DOOR LOCK, POWER HANDLE, SUNROOF, P/SEAT (DRV/PASS)) |
|
B+1 |
50A |
ICU Junction Block (Fuse - S/HEATER DRV/PASS, TRUNK OPEN, MODULE9, P/WINDOW LH/RH) |
|
ESC1 |
40A |
ESC Module |
|
ESC2 |
40A |
ESC Module |
|
IG2 |
30A |
PCB Block (IG2 Relay) |
|
VACUUM PUMP |
20A |
Vacuum Pump Relay |
|
AWD |
20A |
AWD ECM |
|
A/C |
10A |
PCB Block (A/C Relay) |
|
MDPS |
100A |
MDPS Unit |
|
B+4 |
60A |
PCB Block (Engine Control Relay, Fuse - HORN, MODULE, WIPER1) |
|
BLOWER |
50A |
Blower Relay |
|
E-CVVT1 |
40A |
[G4KR] E-CVVT Relay |
|
EWP |
20A |
Electronic Water Pump |
|
ESC4 |
10A |
ESC Module |
|
E-CVVT3 |
20A |
[G4KR] ECM |
|
E-CVVT2 |
20A |
[G4KR] ECM |
Engine compartment fuse panel (PCB block)
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
ESC3 |
10A |
ESC Module |
|
ECU3 |
10A |
ECM |
|
ECU2 |
15A |
ECM |
|
HORN |
20A |
Horn Relay |
|
WIPER1 |
30A |
Wiper Power Relay |
|
TCU2 |
15A |
P/N Relay, TCM |
|
SENSOR4 |
10A |
Brake Vacuum Switch, E/R Junction Block (Vacuum Pump Relay) |
|
TCU1 |
20A |
TCM |
|
WIPER2 |
10A |
IBU, ECM |
|
SENSOR1 |
15A |
[G6DP] Rear Sub Junction Block (Fuel Pump Relay) [G4KR] Rear Sub Junction Block (Fuel Pump Relay), Injector #1-1/#2-1/#3-1/#4-1 |
|
SENSOR5 |
20A |
[G6DP] Ignition Coil #1/#2/#3/#4/#5/#6 [G4KR] Ignition Coil #1/#2/#3/#4 |
|
MODULE |
10A |
E/R Junction Block (Blower Relay) |
|
ECU1 |
20A |
ECM |
|
SENSOR3 |
15A |
[G6DP] Oxygen Sensor #1/#2/#3/#4 [G4KR] Oxygen Sensor (Up/Down) |
|
SENSOR2 |
10A |
[G6DP] Electronic Thermostat, Oil Pressure Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), Canister Close Valve, Recirculation Control Solenoid Valve, Purge Control Solenoid Valve, Variable Exhaust Flap Actuator LH/RH, Cooling Fan Controller [G4KR] A/C Relay, Oil Control Valve (Exhaust), Purge Control Solenoid Valve, Recirculation Control Solenoid Valve, Canister Close Valve, Cooling Fan Controller, Variable Oil Pump Solenoid |
Relay
|
Type |
Relay No. |
Relay Name |
|
MICRO |
E35 |
Vacuum Pump Relay |
|
MICRO |
E40 |
Blower Relay |
|
MICRO |
E41 |
Start Relay |
|
MICRO |
E42 |
E-CVVT Relay (G4KR) |

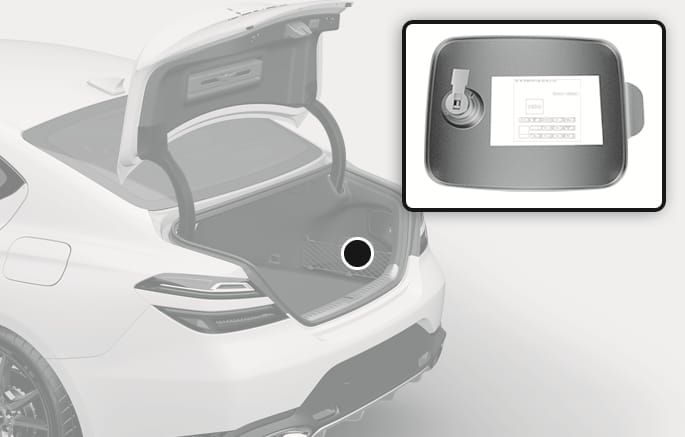

OIK093155
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

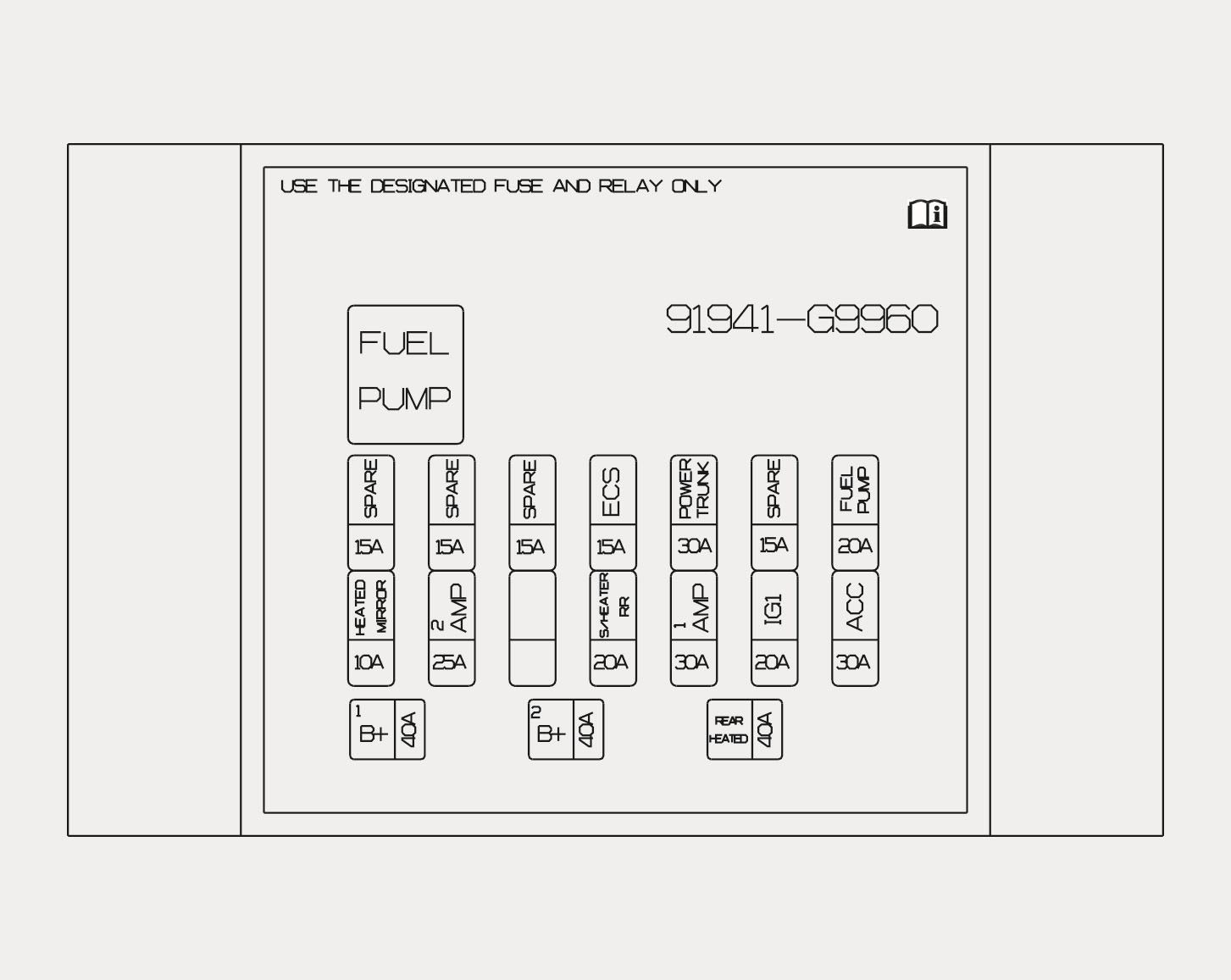

OIK093055N
Rear fuse panel
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
ECS |
15A |
ECS Unit |
|
POWER TRUNK |
30A |
Power Trunk Module |
|
FUEL PUMP |
20A |
Fuel Pump Relay |
|
HEATED MIRROR |
10A |
Driver/Passenger Power Side View Mirror |
|
AMP2 |
25A |
AMP |
|
S/HEATER RR |
20A |
Rear Seat Warmer Control Module |
|
AMP1 |
30A |
Fuse - AMP2 |
|
IG1 |
20A |
IG1 Relay |
|
ACC |
30A |
ICU Junction Block (Fuse - POWER OUTLET1, CHARGER1/2, MODULE6) |
|
B+1 |
40A |
ICU Junction Block (IPS6, IPS7, IPS8, IPS9, IPS10, IPS11, Fuse - IBU 1/2) |
|
B+2 |
40A |
ICU Junction Block (IPS1, IPS2, IPS3, IPS4, IPS5, Fuse - E-SHIFTER1, MODULE1, AIRBAG2) |
|
REAR HEATED |
40A |
Rear Heated Relay |

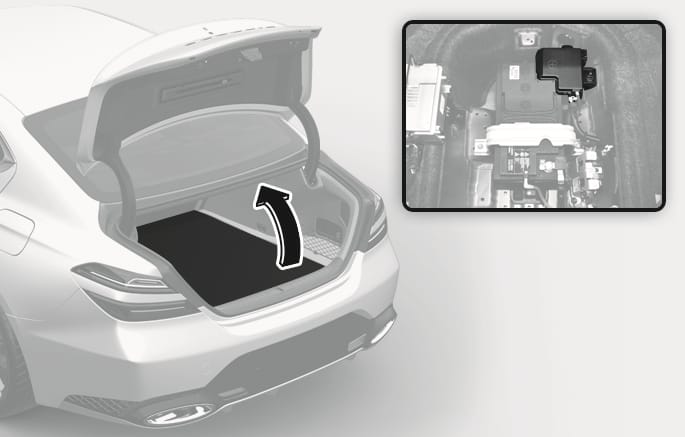

OIK093153
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

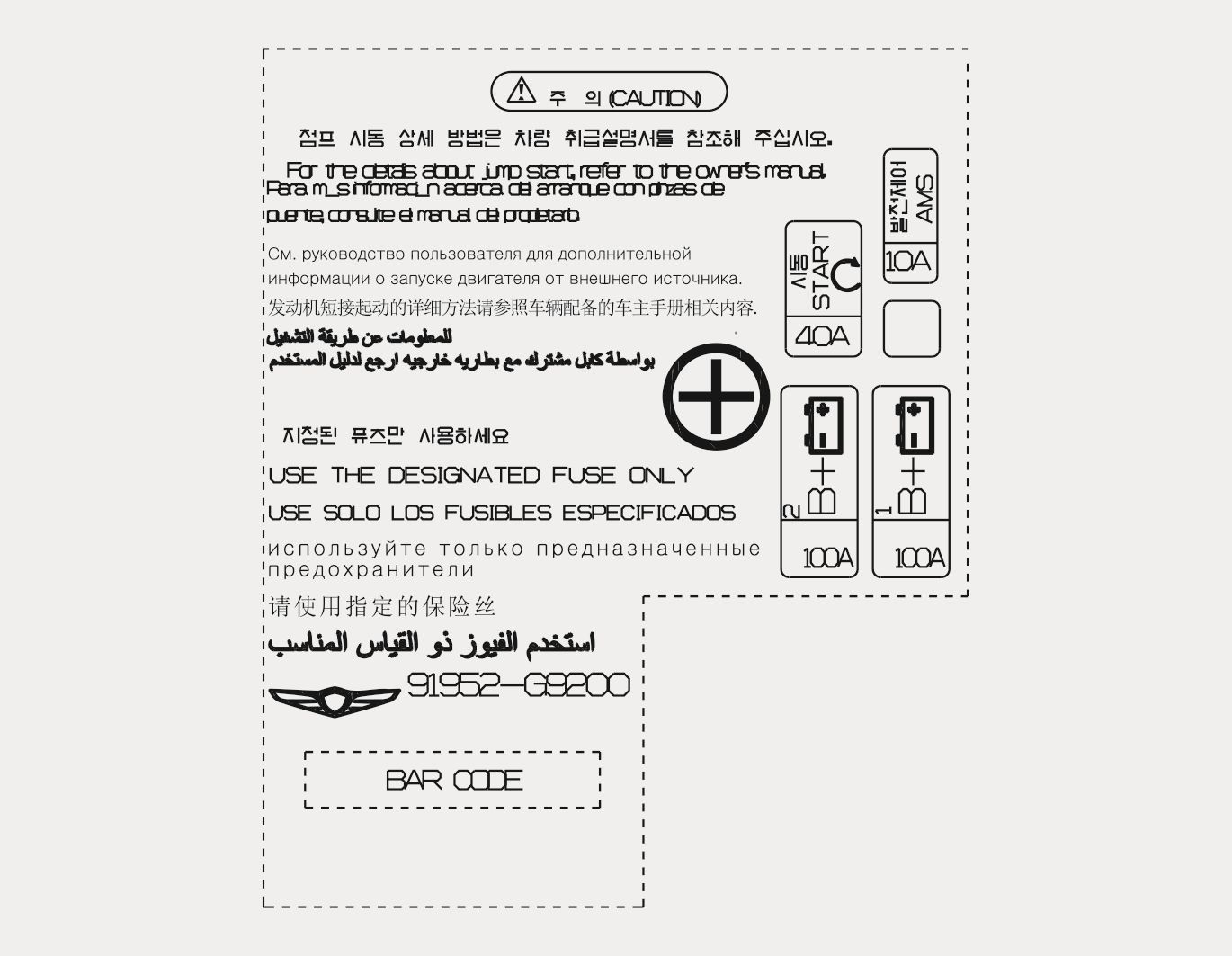

OIK090035
Battery box fuse panel
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
B+1 |
100A |
Rear Sub Junction Block (ACC Relay, Fuse - B+2, REAR HEATED, FUEL PUMP, AMP1, IG1) |
|
B+2 |
100A |
Rear Sub Junction Block (Fuse - B+1, ECS, S/HEATER RR, POWER TRUNK) |
|
START |
40A |
E/R Junction Block (Fuse - START), PCB Block (Fuse - ECU2, TCU1) |
|
AMS |
10A |
Battery Sensor |
