Lane Following Assist operation

Turning Lane Following Assist On/Off

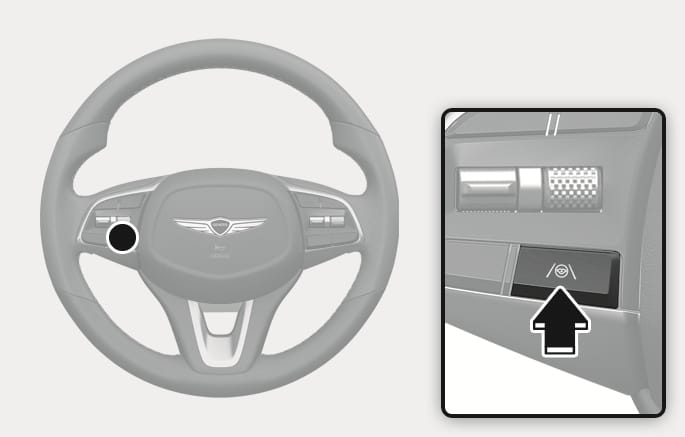

OIK073016

With the engine on, shortly press the Lane Driving Assist () button located on the steering wheel to turn on Lane Following Assist. The gray or green indicator light will appear on the instrument cluster.

Press the button again to turn off the function.

A long press of the Lane Driving Assist button turns Lane Keeping Assist on and off. For more information, refer to the "Lane Keeping Assist (LKA)" section in this chapter.

Warning and control

Lane Following Assist

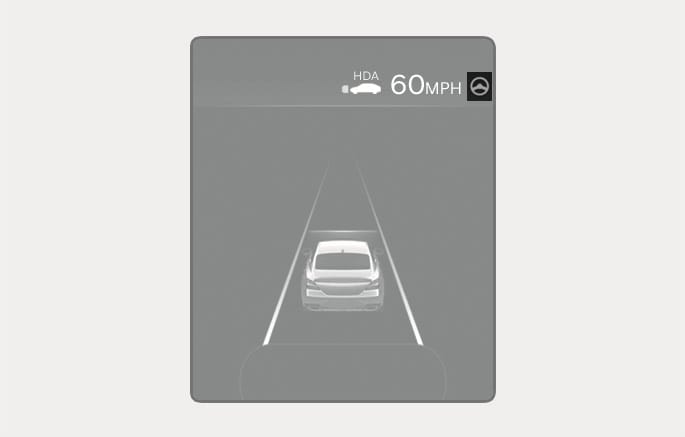

OIK073090N

If the vehicle ahead and/or both lane markings are detected and your vehicle speed is below 120 mph (200 km/h), the green indicator light illuminates on the instrument cluster, and Lane Following Assist helps center the vehicle in the lane by assisting the steering wheel.

When the steering wheel is not assisted, the white indicator light blinks and change to gray.

Hands-off warning

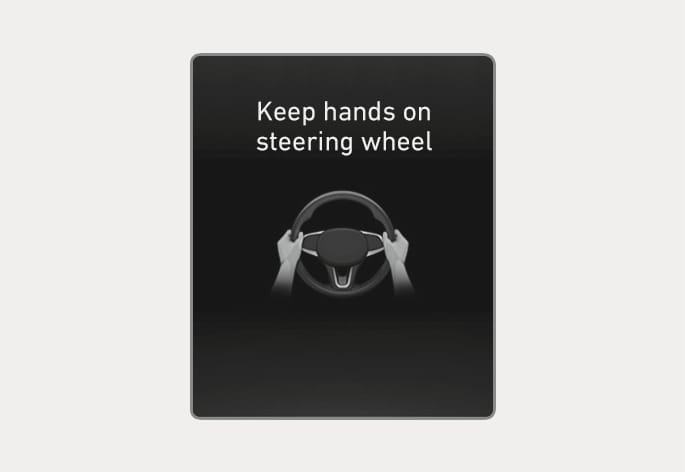

OIK070107L

If the driver takes their hands off the steering wheel for several seconds, the "Keep hands on steering wheel" warning message will appear and an audible warning will sound in stages.

First stage: Warning message

Second stage: Warning message (red steering wheel) and audible warning

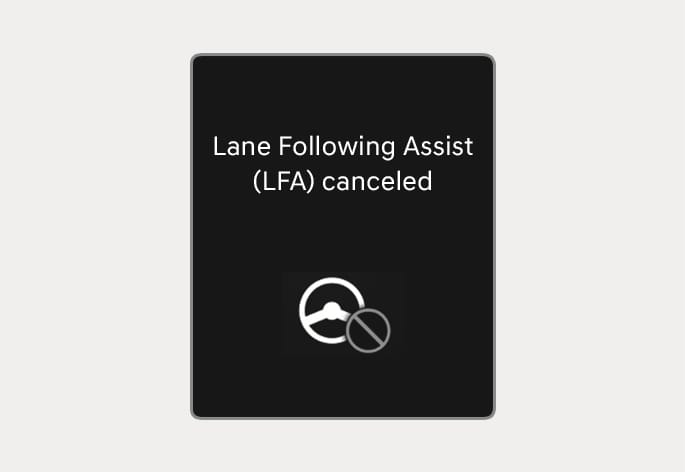

OTM070117N

If the driver still does not have their hands on the steering wheel after the hands-off warning, the "Lane Following Assist (LFA) canceled" warning message will appear and Lane Following Assist will be automatically canceled.

  • The steering wheel may not be assisted if the steering wheel is held very tight or the steering wheel is steered over a certain degree.

  • Lane Following Assist does not operate at all times. It is the responsibility of the driver to safely steer the vehicle and to maintain the vehicle in its lane.

  • The hands-off warning message may appear late depending on road conditions. Always have your hands on the steering wheel while driving.

  • If the steering wheel is held very lightly the hands-off warning message may appear because Lane Following Assist may not recognize that the driver has their hands on the steering wheel.

  • If you attach objects to the steering wheel, the hands-off warning may not work properly.

  • For more information on instrument cluster settings, refer to the "Cluster display (Type A)", "Cluster display (Type B)" section in chapter 4.

  • When both lane markings are detected, the lane lines on the instrument cluster will change from gray to white.

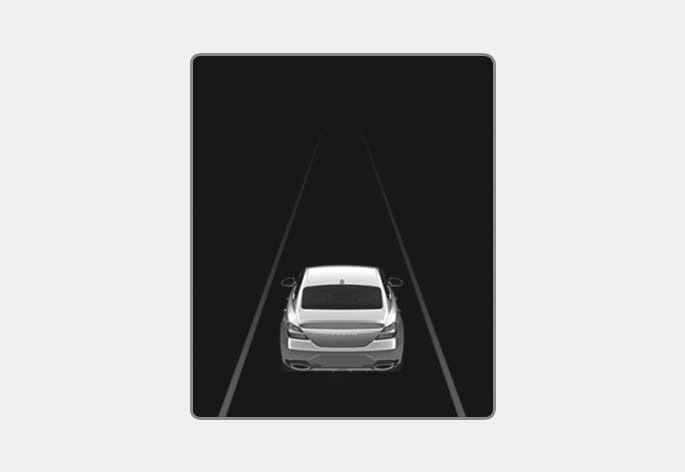

Lane undetected

OIK070020

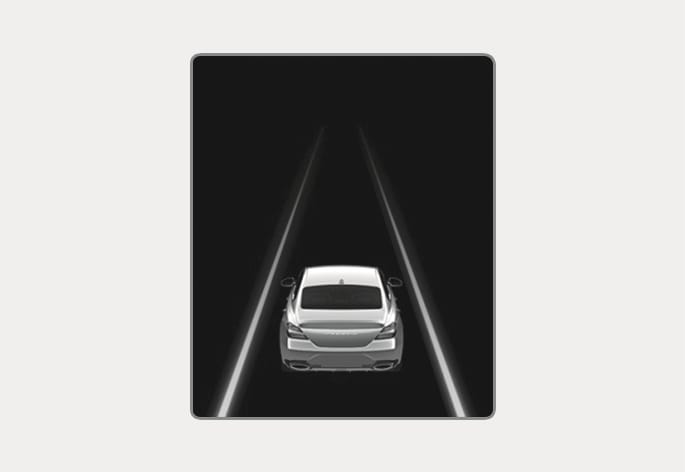

Lane detected

OIK070086

  • The images and colors in the instrument cluster may differ depending on the instrument cluster type or theme selected from the instrument cluster

  • If lane markings are not detected, steering wheel control by Lane Following Assist can be limited depending on whether a vehicle is in front or the driving conditions of the vehicle.

  • Even though the steering is assisted by Lane Following Assist, the driver may control the steering wheel.

  • The steering wheel may feel heavier or lighter when the steering wheel is assisted by Lane Following Assist than when it is not.
